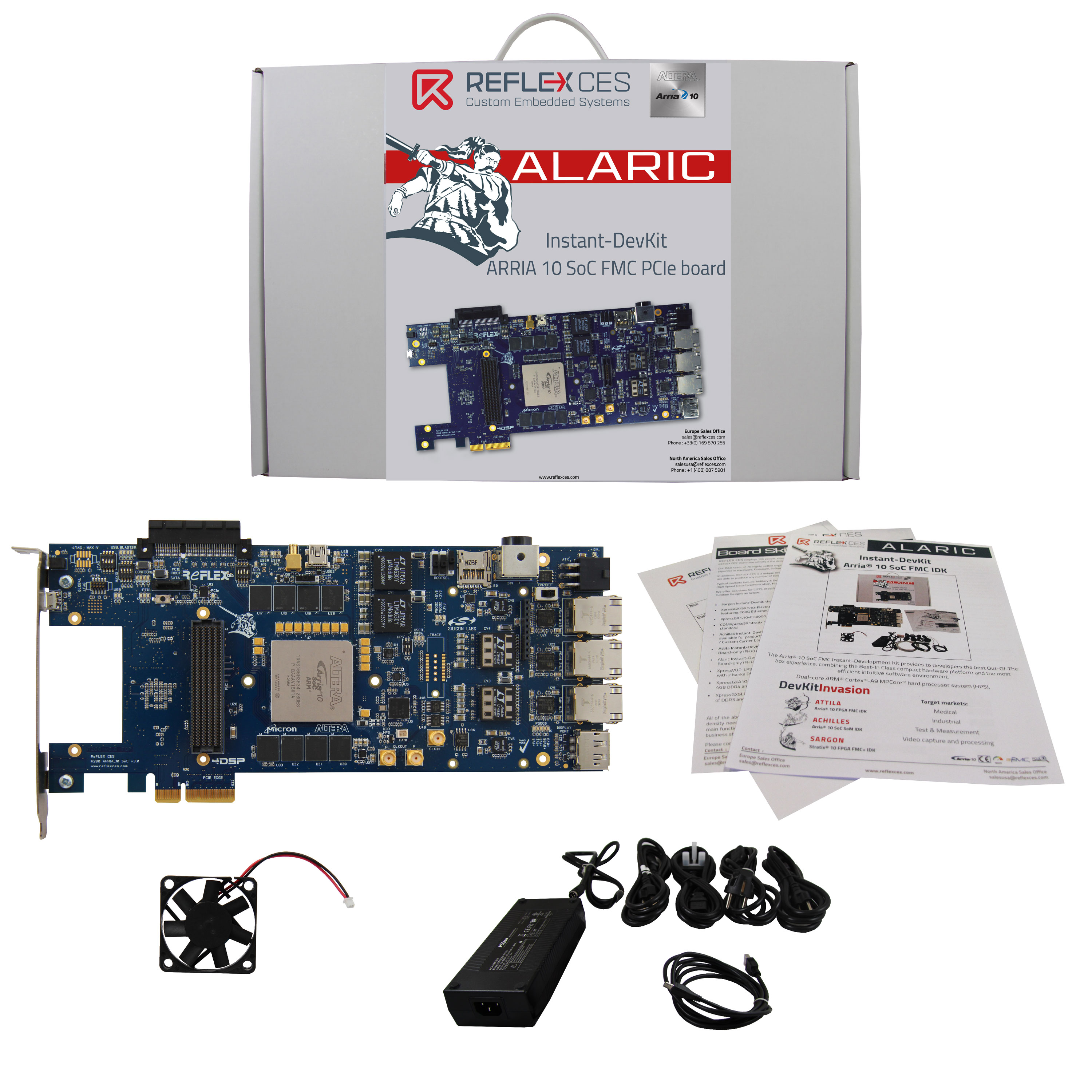

Intel® Arria® 10 SoC FMC Alaric Instant-DevKit PCIe board
About this offer

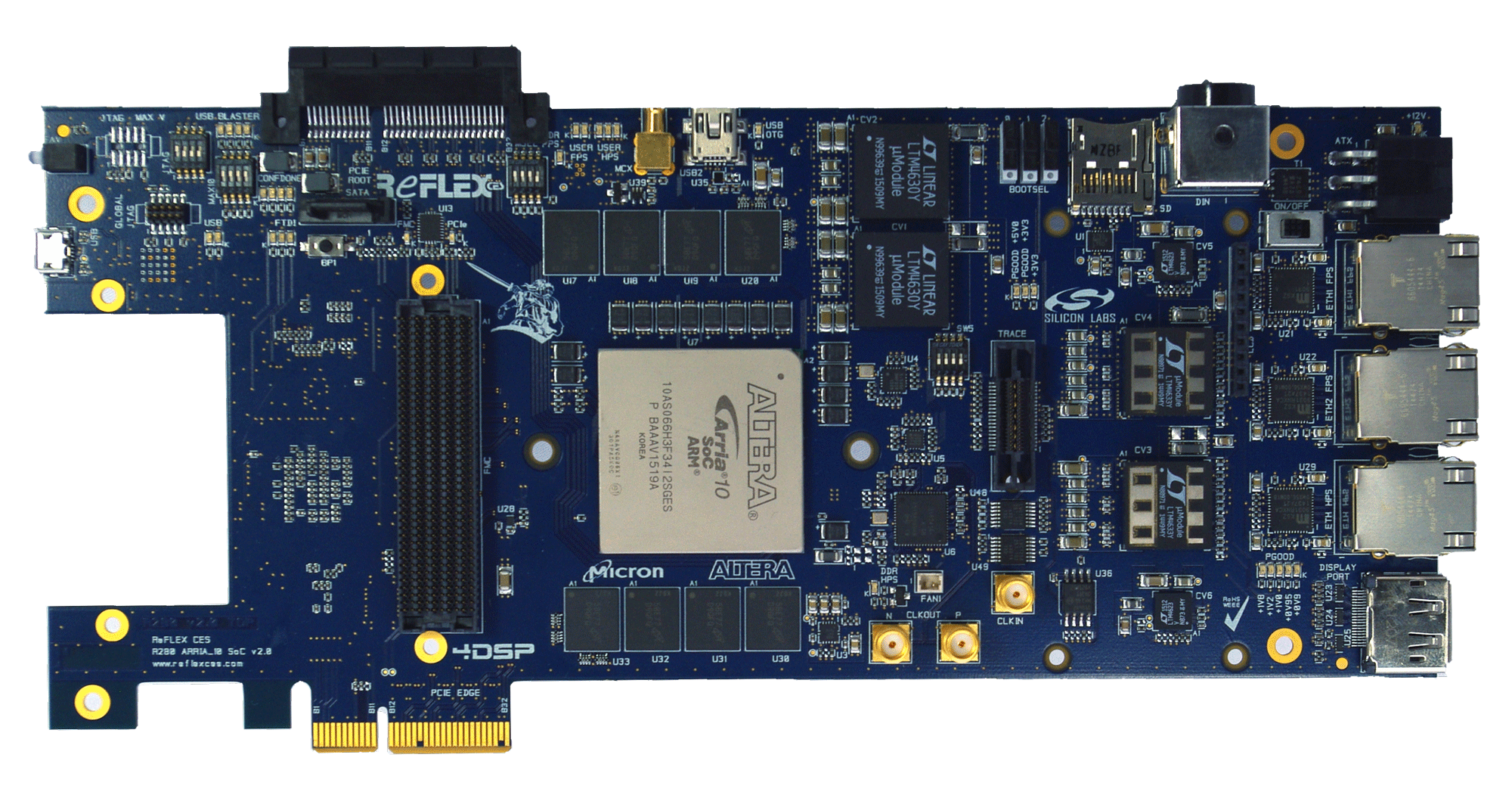

The Alaric board is designed for high performance serial transceiver applications using series 10 SoC FPGAs Intel® Arria® 10 SoC 660 KLEs in F34 package compliant 660 KLEs. The main features of the board are: Hardware, software design tools, IP, and pre-verified reference designs. PCIe device with 4 lanes at 8 Gb/s link rate (Gen3) and PCIe root with 4 lanes at 8 Gb/s link rate (Gen3) Advanced memory interface with DDR3 on board Memory up to 4GB Develop networking applications with 10/100/1000 Mbps Ethernet (GMII, RGMII and SGMII) Implement Video display applications with Display output port (up to 5.4Gbit/s) The board respect the VITA57.1 standard, you can plug FPGA Mezzanine Card (FMC) on the front end The FMC interface provides High Pin Count (HPC) fully populated, compliant +1.8V only ( +vadj): 160 LVCMOS (1.8V) usable as 80 LVDS (1.8V, 2.5V) 4 dedicated LDVS clocks that respect the VITA57.1 pinout assignment usable as LVDS signals or 8 LVCMOS 10 XCVR (up to: 14.2 Gb/s)* * Production Device with transceiver speed grade 3 can reach 14.2 Gb/s chip to chip links, The VITA 57.1 standard allows interfaces up to 10 Gb/s The target markets are as wide as Video capture and processing, Industrial, Test & Measurement and Medical.
Details
Availability and Pricing
Contact partner for price:
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
High Performance Computing
Print Imaging and Office Automation
Digital Security Surveillance
Industry
Manufacturing
Defense and Space
Communications
Health and Life Sciences
Technical Specifications
- Category:
- Component: FPGA Boards: Development Kits
- End Customer Type:
-
Consumer
Small and Medium sized Business
Enterprise
Other
Board Quality Metrics
- CE Compliance Comments:
- /
- Test Plan Summary:
- /
- Defects per Million Opportunities (DPMO):
- /
- Return Material Authorization (RMA) Policy:
- Yes
- ISO 9000 & 9001 Compliant?:
- Yes
- Conflict Mineral Policy Compliant:
- Yes
- CE Compliant?:
- Yes
- Board Schematics Available?:
- Yes
- RoHS Compliant:
- Yes
- Parts per Million (PPM):
- /
- User Guide Available?:
- Yes
Included Intel Technology
Resources
REFLEX CES
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
REFLEX CES
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
For over 16 years, REFLEX CES has designed and manufactured high-speed boards and rugged systems solutions based on high density FPGAs that significantly reduce its customers’ technology risks. The company provides custom embedded and complex systems, and specializes in Modified-Off-The-Shelf (MOTS) solutions for VPX, OpenVPX, Compact PCI, VME rugged systems, embedded systems, industrial systems but also a complete portfolio of COTS of high-speed boards, FPGA boards, PCIe boards, FMC daughter boards, portable and rackable computer and recorder. reflex ces also proposes Instant Development Kits for prototyping or production usages with FMC boards. Its expertise spans from chip-level and software-level designs up to complete system-level designs, manufacturing, and production of small and medium series of turn-key systems targeting customers in the military & defense, security, finance, big data, video processing, industrial, medical, machine & intelligent vision, test & measurement, and automotive sectors.
