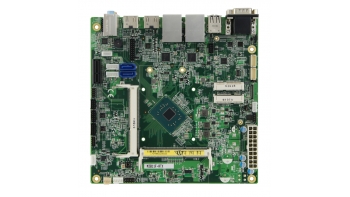

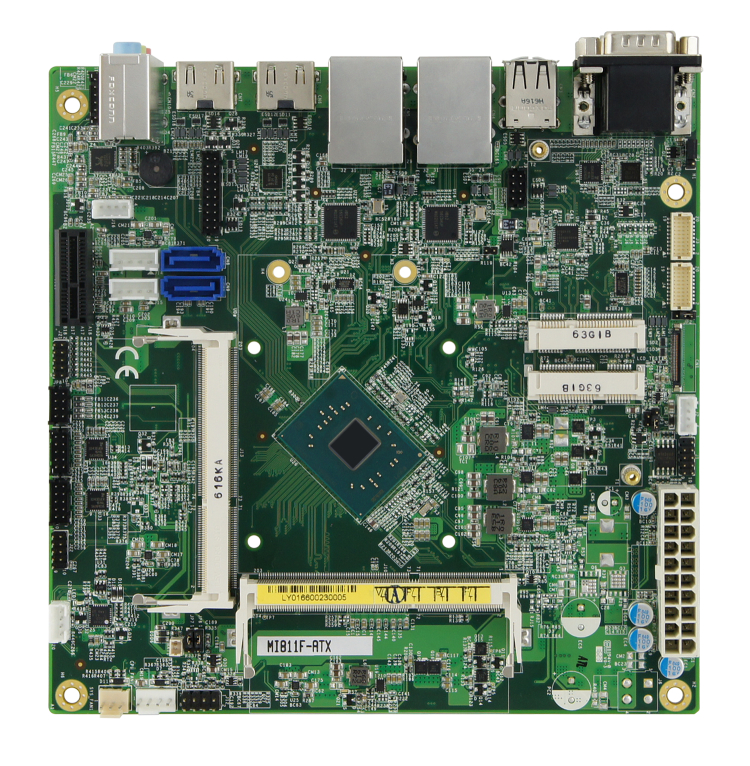

The MI811 Mini-ITX Motherboard comes with the Intel® Pentium® QC N4200 2.5GHz or Celeron® DC N3350 processors, both using the Goldmont microarchitecture for low-power Intel SoCs. The board has two memory sockets to support DDR3L-1866 SO-DIMM modules with a total capacity of 8GB.The versatile MI811 takes advantage of the latest SoC integrated with Intel® Gen 9 featuring seamless Ultra HD graphics, with three display outputs including an HDMI, 2nd HDMI or DVID, and eDP or 24-bit dual channel LVDS. In compliance with EuP/ErP standards, the MI811 supports IBASE's iSMART 3.2 utility enabling power failure detection, power on/off scheduling, and low temperature monitoring to improve the overall environmental performance.Measuring 170mm by 170mm, the MI811 is populated with two Intel I211-AT PCI-E Gigabit Ethernet and a Fintek I/O controller that controls four COM ports. Other essential interfaces include four USB 3.0, four USB 2.0, and two SATA III, while expandability comes in the form of one PCI-E(1x), one Mini PCI-E and one mSATA. The board is designed to accept a wide-range of DC power input from 12V to 24V, making it suitable for use in POS, kiosk, industrial automation, bus and in-vehicle applications.With two processors, Intel® Pentium® N4200 and Intel® Celeron® N3350, to choose from, buyers can opt between ATX or 12V-24V power.
