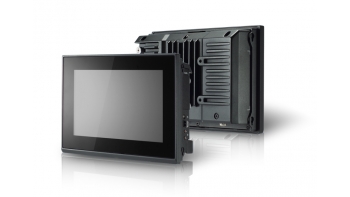

Moxa MPC-2070 Series 7-Inch Industrial Panel Computer
About this offer
The MPC-2070 7-inch panel computers with Intel Atom® processor E3800 series deliver a reliable and durable platform of wide versatility for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two gigabit Ethernet LAN ports, the MPC-2070 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy. The MPC-2070 series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-2070 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen, providing an excellent user experience for applications outdoors. The MPC-2070 series is Microsoft Azure Certified for IoT. It can leverage the Microsoft reference configuration and has been tested to work with Microsoft Azure IOT services for your industrial IoT applications.
Availability and Pricing
Mass Production Schedule: 2018-03-05
Working Sample Schedule: 2018-03-05
North America Region
Latin America Region
Asia, Pacific, and Japan:
Rest of Asia
People's Republic of China:
People's Republic of China
Defense and Space
- System: Panel PC
- Operating Systems:
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
