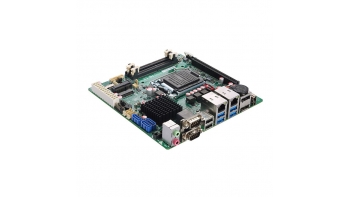

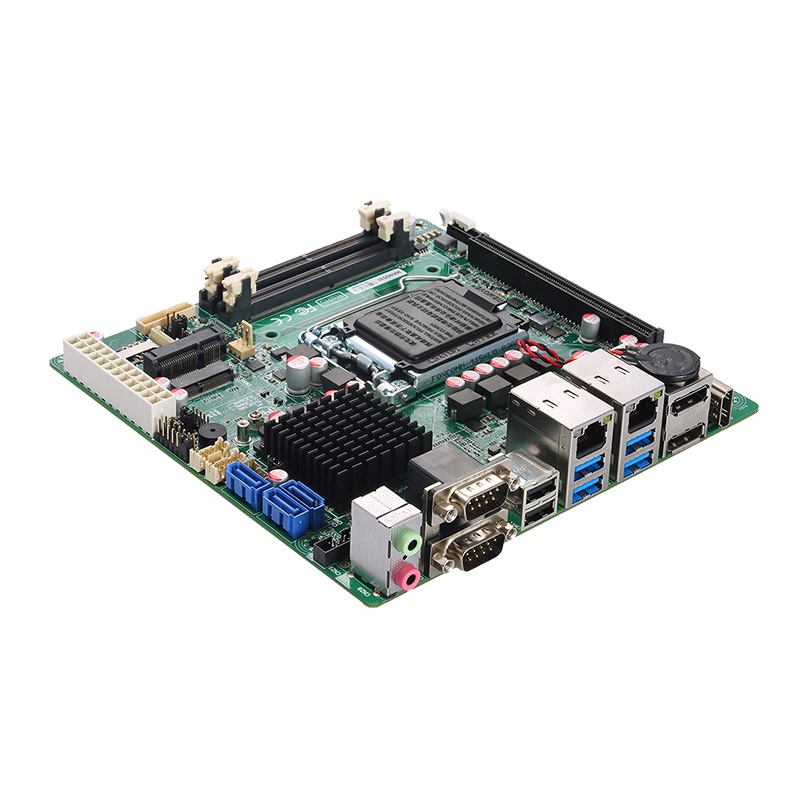

MANO520 -- Mini-ITX SBC with LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor, Dual DisplayPort++, HDMI, LVDS, USB 3.0, mSATA, M.2 and Dual GbE LAN
About this offer
The MANO520 is powered by the LGA1151 socket 8th generation Intel® Core™ i7/i5/i3 (code name: Coffee Lake), Intel® Pentium® Gold or Intel® Celeron® processor with the Intel® Q310 chipset (Intel® Q370 optional). The Intel® Coffee Lake-based MANO520 is specifically designed for performance-demanding applications with its excellent reliability as well as communication and real-time computing capabilities. The MANO520 supports two 260-pin DDR4-2666/2400 SO-DIMM sockets for up to 32GB of memory. Also, the mini-ITX motherboard features three SATA-600 connectors and one mSATA for additional storage. It is equipped with one full-size PCI Express Mini Card, one PCIe x16 and one M.2 Key E slots for wireless devices such as Wi-Fi, Bluetooth, and 3G/LTE. Moreover, the mini-ITX form factor single board computer features an ATX connector with AT mode auto power function.
Details
Availability and Pricing
Mass Production Schedule: 2019-07-02
Working Sample Schedule: 2019-07-02
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
High Performance Computing
Others
Industry
Manufacturing : Industrial Automation
Others
Energy and Utilities : Electric Power
Technical Specifications
- Category:
- Component: Board: Mini-ITX
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Pentium® Processor
Intel® Pentium® Gold Processor Series
Intel® Core™ Processors
8th Generation Intel® Core™ i7 Processors
8th Generation Intel® Core™ i5 Processors
9th Generation Intel® Core™ i3 Processors
8th Generation Intel® Core™ i3 Processors
9th Generation Intel® Core™ i7 Processors
9th Generation Intel® Core™ i5 Processors
