LYNX-612B
About this offer

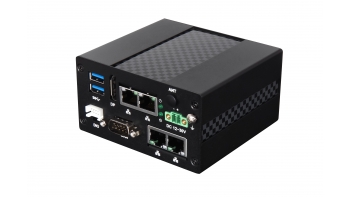

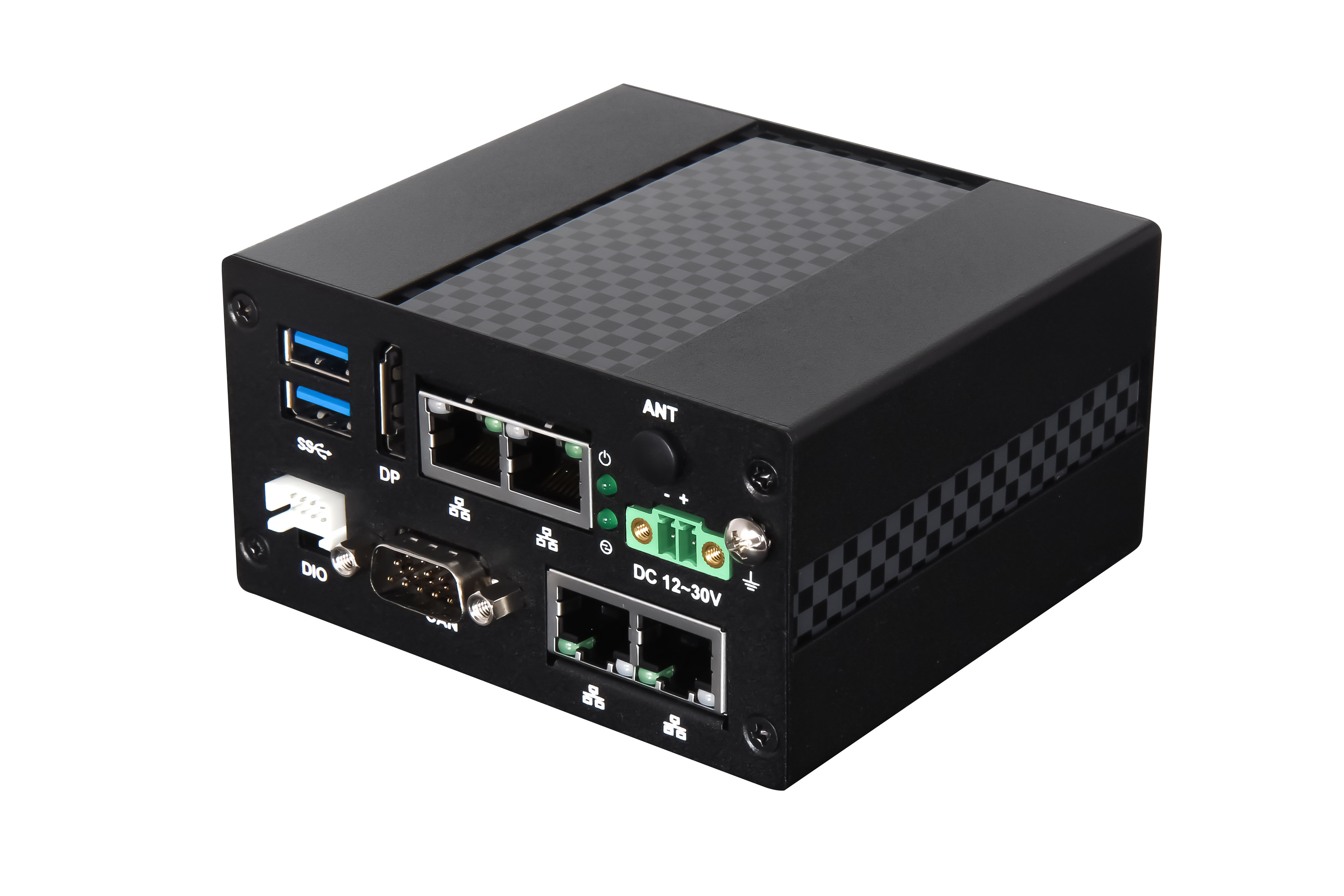

LYNX-612B is a compact, fan-less and cable-less PC adapting low power Intel® Celeron® processor (formerly "Apollo Lake"). It’s CANbus can connect to different electronic unit and communicate with each other, 8 bit GPIO pins provide a programmable interface to read the state of a binary input device or control the on/off state of a binary output device, also with 4 LAN support in Palm-Sized dimension, LYNX-612B can easily work as IoT gateway. ■ Intel® Celeron® Processor ■ Support 2x LAN and 1x M.2 for wireless module ■ Extended I/O interface of 2x Isolation LAN, 1x CANbus, and 1x 8 Channel GPIO ■ Heavy Industry EMC standard ■ Support customized appearance (Optional) ■ Support extended temperature (Optional)
Details
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Factory Automation
Storage
Industry
Manufacturing : Industrial Automation
Transportation and Warehouse : Warehousing and Storage
Technical Specifications
- Category:
- System: Industrial Computer
- Operating Systems:
-
Linux*:Other Linux family*
Linux*:Other Linux family*:Yocto Project*
Microsoft Windows Client*:Windows 10 family*
Microsoft Windows Client*:Windows 10 family*:Windows 10 IoT Enterprise*
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Other
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
