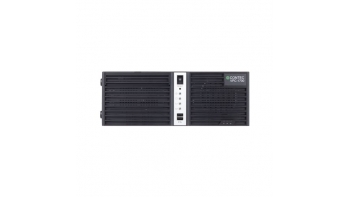

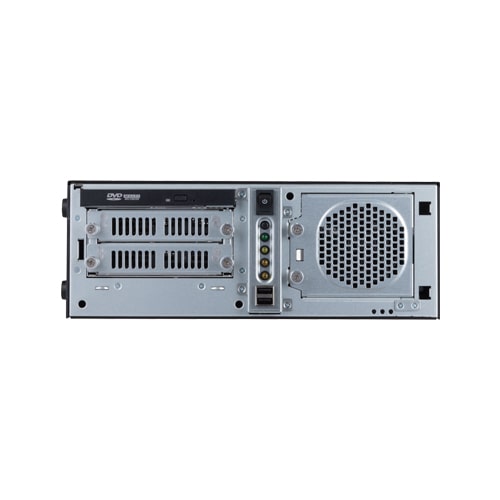

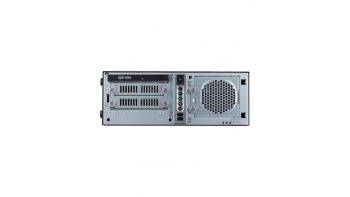

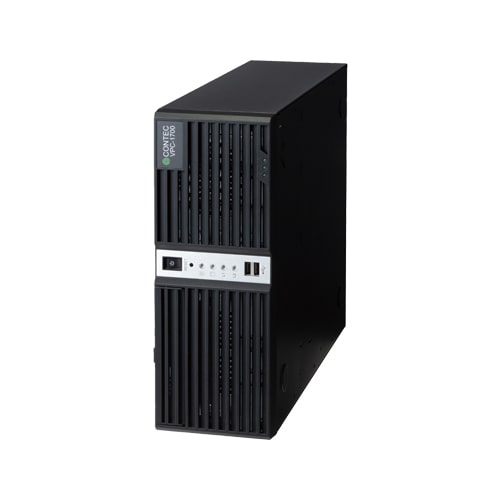

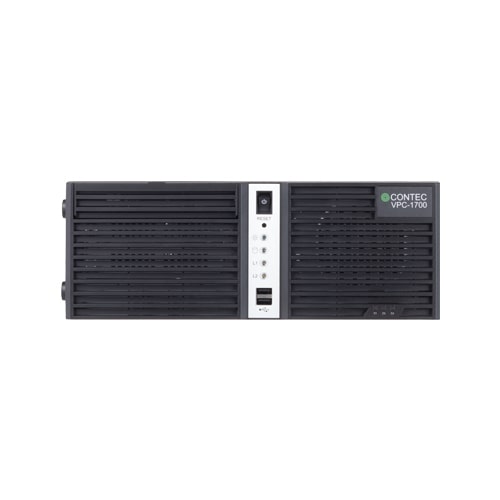

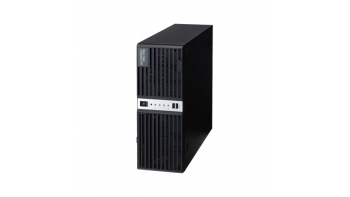

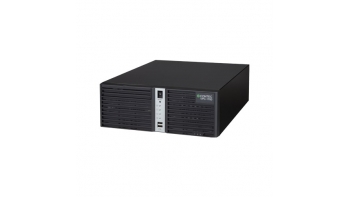

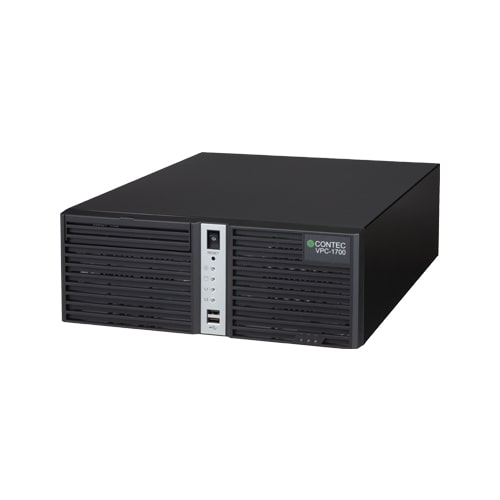

Industrial Computer VPC-1700-G - Slim Tower PC

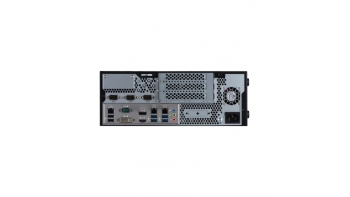

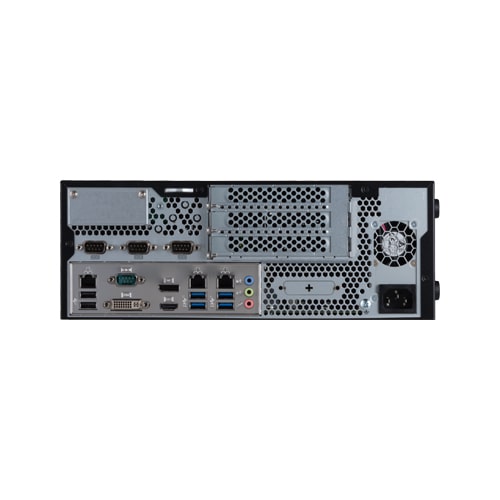

This BTO industrial computer is equipped with a 8th generation Intel® Core™ processor. The Intel® Q370 chipset with DDR4 memory (8GB to 32GB) provides advanced computing and graphical performance. This computer features a variety of interfaces such as DVI-I, HDMI, DisplayPort, four USB3.1 Gen1(USB3.0) ports (rear: 4), four USB2.0 ports (front:2, rear:2), four serial ports (RS-232C/422A/485×1, RS-232C×3), and three 1000BASE-T ports, which can be used in a wide range of embedded applications such as general-purpose PC OS-based controllers and information terminals. Two types of expansion slots are provided: 1x PCI-Express (x1) slot and 2x PCI slots, or 3x PCI slots. Intel® Core™ processor series (formerly "Coffee Lake") SupportedThis computer features a power-saving, high performance 8th generation Intel® Core™ processor and provides advanced computing and graphical performance without consuming massive amounts of power. The embedded CPU contributes to longer-term product availability. High-performance graphicsFull HD video can be smoothly played with the Intel® HD Graphics 630/610. Furthermore, the product can support full HD outputs from three screens of the DVI-I, DisplayPort, and HDMI. Mirroring (RAID1) supportedMirroring (hardware or software option) can be configured to suit the application and to ensure system’s redundancy. Removable storageThe front-accessible 3.5 inch SATA storage supports mirroring and other RAID functions. Expand your peripherals with various interfacesInterfaces including DVI-I, HDMI, DisplayPort, 1000BASE-T x 3, USB3.1 Gen1 (USB3.0) x 4, USB2.0 x 4, serial port (RS-232C/RS-422A/RS485 x 1, RS-232C x 3), and audio are provided. 1x PCI-Express(x1), 2x PCI or 3x PCIExpansion slots can be selected from 1x PCI-Express (x1) slot and 2x PCI slots, or 3x PCI slots. The maximum size of the board that can be set is 176(L) x 106(H)[mm].
