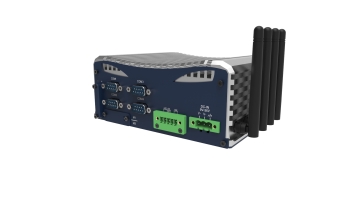

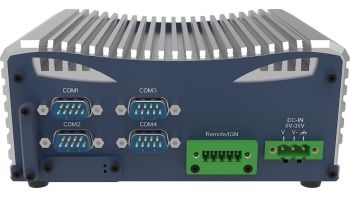

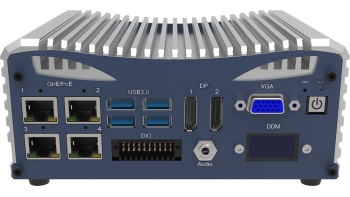

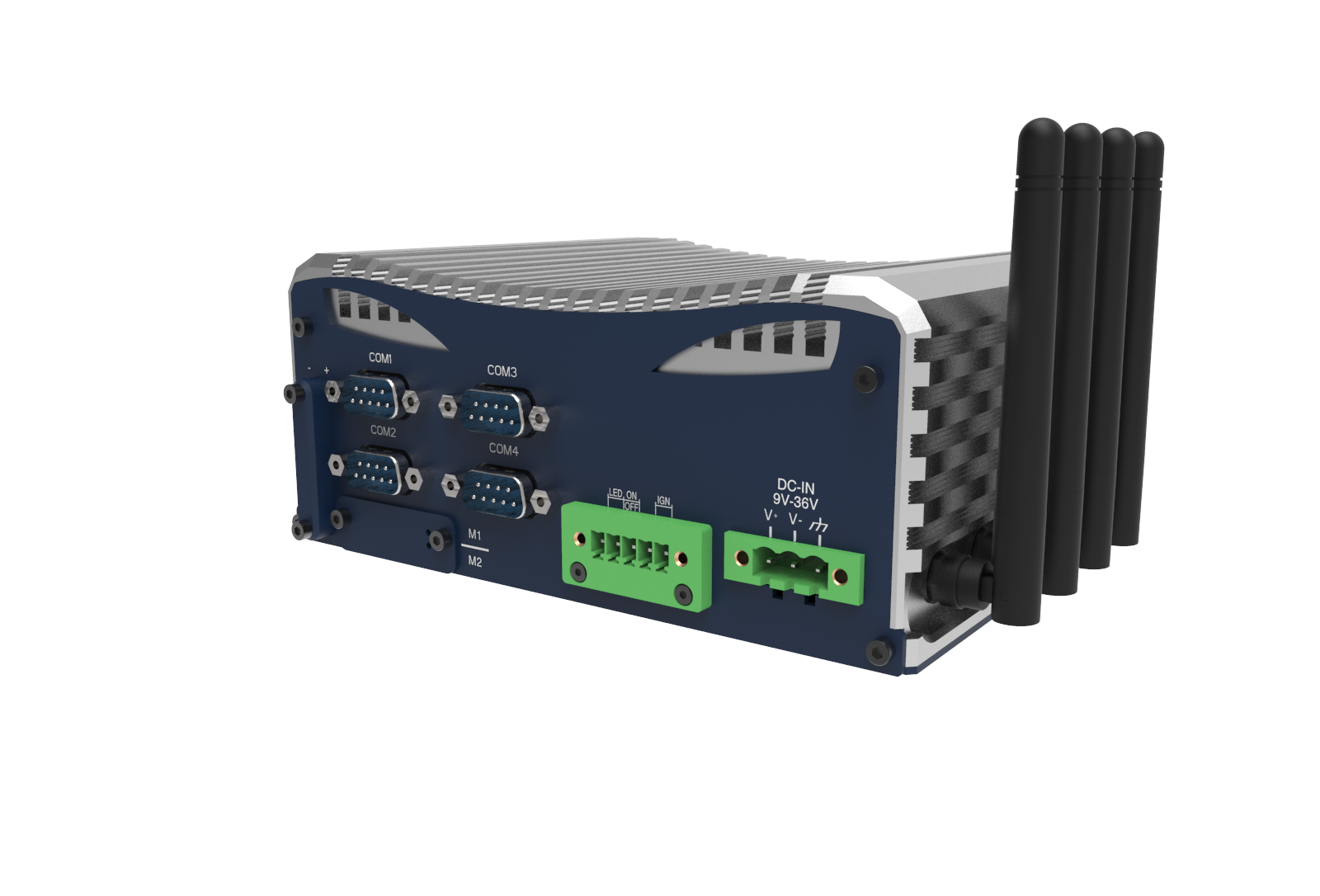

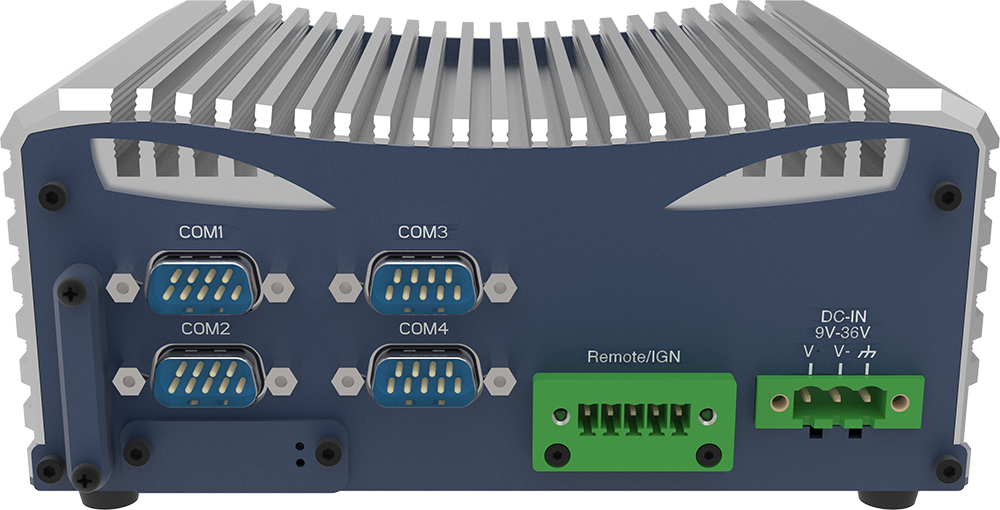

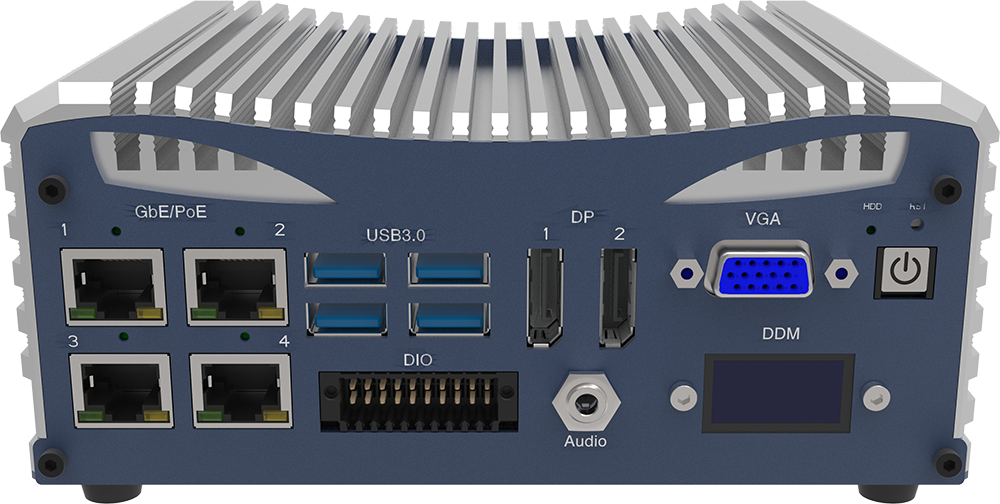

Eagle Eyes-AIM 6th/7th Gen Core™ U Series Fanless Box Computer
About this offer
Features Supports 6th/7th Gen Intel® Core™ U Series Processor Intelligent Ekit with AI function to monitor system health via DDM Triple display: 1x VGA, 2x DP (DP supports 4K) PoE+ version with 4x PoE+ IEEE 802.3at (PSE 30W per port) Optional: TPM 2.0 / TPM1.2 for data security Isolated 8-bit DI, 8-bit DO Special Power Design: Wide voltage 9~36VDC input OCP/OVP support Surge protection: 80V/1ms Power ignition control Easy Expansion & Installation: 2x full length Mini-PCIe w/ 2x SIM push-push slots Remote on/off power switch with LED 1 x 2.5” HDD/SSD, 1x M.2 M Key 2242 SATA
Details
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Smart City
Environmental Monitoring
Smart Building
Digital Security Surveillance
Connected Worker
Cloud Computing
Artificial Intelligence
Energy Monitoring
Collaboration
Factory Automation
Video Management
Industry
Automotive
Communications
Energy and Utilities
Manufacturing
Transportation and Warehouse
Technical Specifications
- Category:
- System: Industrial Computer
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Included Intel Technology
Intel® Core™ Processors
6th Generation Intel® Core™ i5 Processors
6th Generation Intel® Core™ i3 Processors
6th Generation Intel® Core™ i7 Processors
Intel® Celeron® Processor
Intel® Celeron® Processor 3000 Series
