ADLINK Express-KL/KLE COM Express® Type 6 Basic Size Computer-on-Module
ADLINK Express-KL/KLE COM Express® Type 6 Basic Size Computer-on-Module
About this offer

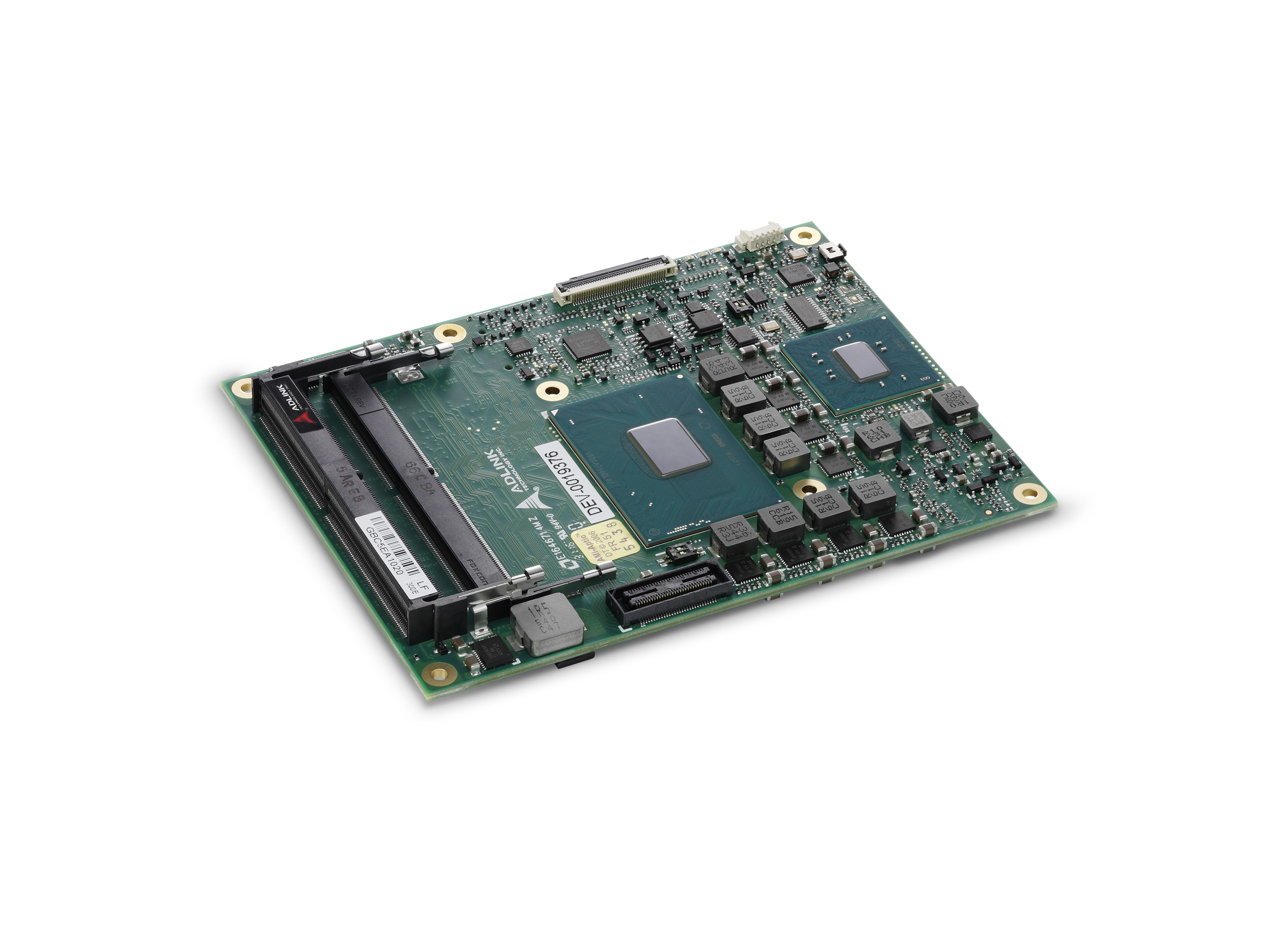

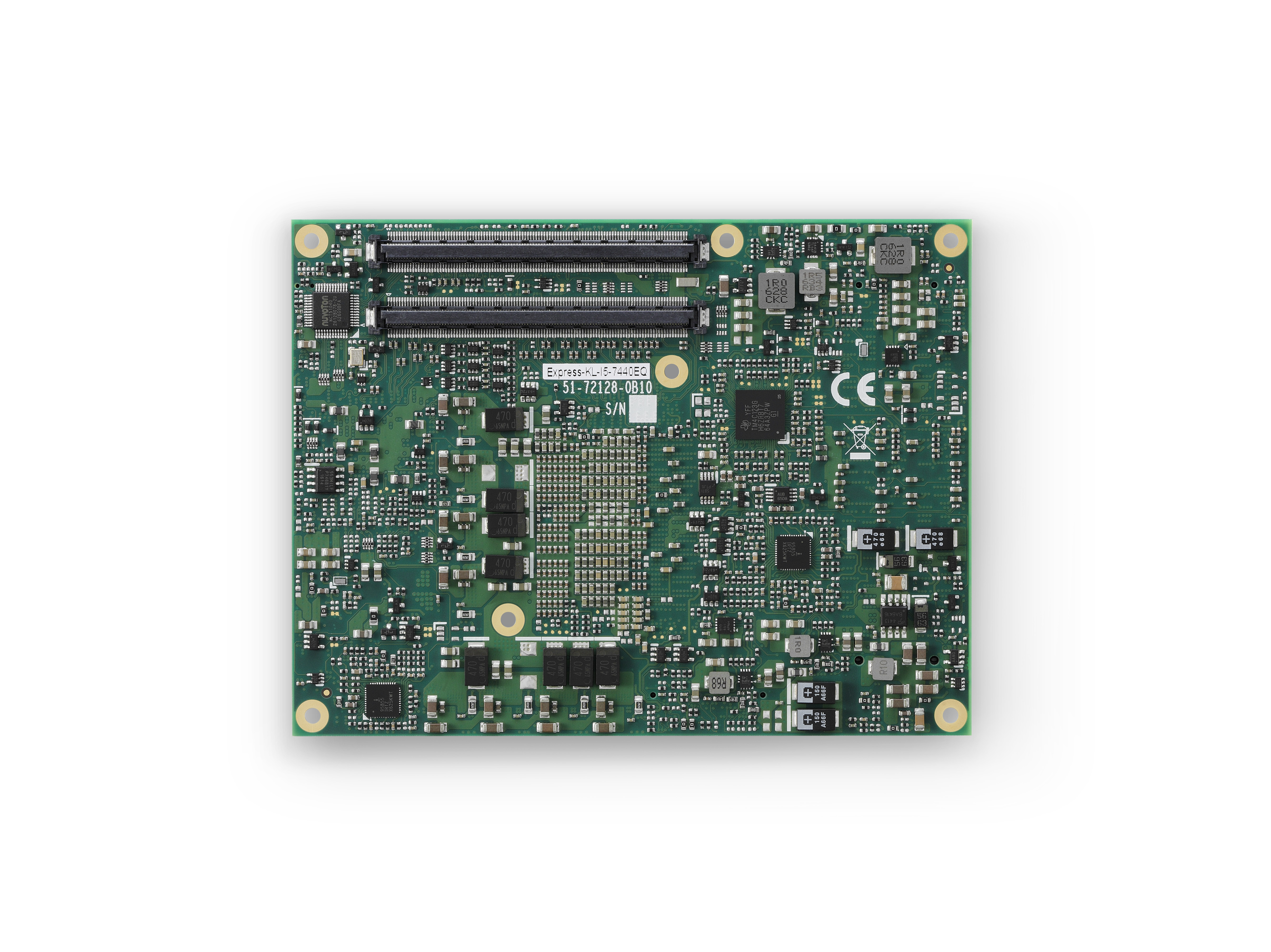

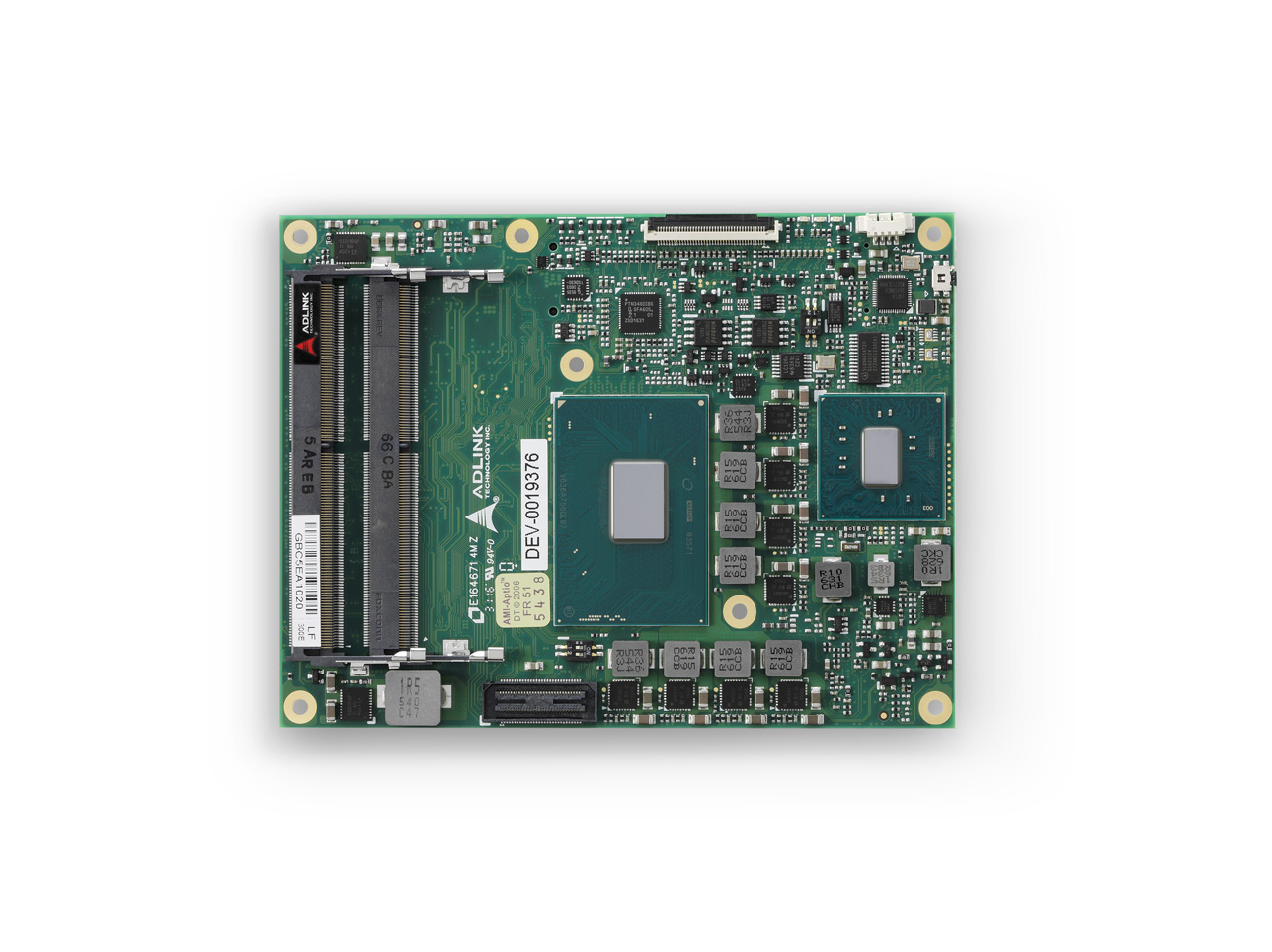

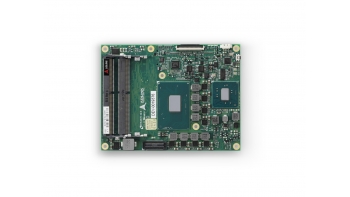

ADLINK Express-KL/KLE is a COM ExpressR COM.0 R2.1 Basic Size Type 6 module supporting the 64-bit 7th Generation Intel® Core™ and Xeon® processor E3 with Mobile Intel® QM175, HM175, CM238 Chipset. The Express-KL/KLE is specifically designed for customers who need excellent graphics performance and high-level processing performance in a long product life solution. Integrated Intel® Generation 9 Graphics includes features such as OpenGL 4.4/4.3/4.2, DirectX 11, Intel® Clear Video HD Technology, Advanced Scheduler 2.0, 1.0, XPDM support, and DirectX Video Acceleration (DXVA) support for full H.265/HEVC 10-bit, MPEG2 hardware codec. The Express-KL/KLE has dual stacked SODIMM sockets supporting up to 32 GB of DDR4 ECC/non-ECC memory. I/O features include a single onboard GbE port, one PCIe x16, eight PCIe x1 Gen3 lanes, USB 3.0 and 2.0 ports, and SATA 6 Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS backup.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 40
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Factory Automation
Advanced Analytics
Smart Building
Video Management
Environmental Monitoring
Intelligent Vending
Smart Home
Others
Digital Signage
Smart City
Industry
Defense and Space
Others
Retail
Gaming : eSports
Agriculture
Manufacturing : Industrial Automation
Education
Government
Arts and Entertainment : Amusement and Gambling
Hospitality and Restaurants : Accommodation
Hospitality and Restaurants : Food and Drink Services
Health and Life Sciences : Medical Devices
Health and Life Sciences : Medical Imaging
Health and Life Sciences : Patient Infotainment
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:VxWorks*
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Xeon® Processors
Intel® Core™ Processors
7th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i5 Processors
7th Generation Intel® Core™ i7 Processors
