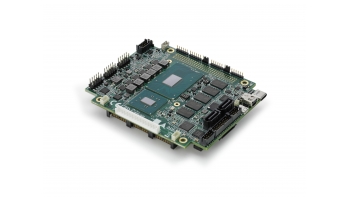

ADLINK CMx-SLx: PCI/104-Express Type 1 Single Board Computer with 6th Gen. Intel® Core™ Processor
About this offer
Key Features6th gen. Intel Core Processor (formerly codenamed Skylake)Up to 8GB DDR4-ECC soldered memory3x DDI channels, 1x micro HDMI, 1x mini DP and 1x 18/24 bit single channel LVDS4x PCIe x1 and 1x PCIe x 16 (PEG) configurable as 1x PCIe x16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x42x GbE LAN, 2x SATA 6Gb/s, 1x USB 3.1, 6x USB 2.0, 2x COM, 8x GPIOSupports Smart Embedded Management Agent (SEMA®) functionsExtreme Rugged operating temperature -40°C to +85°C variantThe CMx-SLx is a PCI/104-Express Type 1 Single Board Computer (SBC) featuring the 64-bit 6th Gen. Intel® Core™ i3 processor (formerly "Skylake-H"), supported by the Intel® CM236 Chipset. The CMx-SLx is specifically designed for customers who need high-level processing and graphics performance in a long product life solution. The CMx-SLx Intel processor supports Intel Hyper-Threading Technology (i3-6102E = 2 cores, 4 threads) and 8 GB of soldered ECC DDR4 memory at 1866/2133 to achieve optimum overall performance.Integrated Intel® Generation 9 Graphics includes features such as OpenGL 5.x, OpenCL 2.x, DirectX 2015, DirectX 12, Intel® Clear Video HD Technology, Advanced Scheduler 2.0, 1.0, XPDM support, and DirectX Video Acceleration (DXVA) support for full HEVC/VP8/VP9/AVC/MPEG2 hardware codec. Graphics outputs include single-channel 18/24-bit LVDS (eDP x4 lanes optional) and three DDI ports supporting HDMI/DVI/DisplayPort.The CMx-SLx is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time.The CMx-SLx features one mini DisplayPort (DDI1), one micro HDMI port (DDI2), and one single channel 18/24-bit LVDS port (eDP), two Gigabit Ethernet ports, four USB 2.0 ports, two COM ports, eight GPIOs (from BMC), two SATA 6Gb/s ports, and one onboard SATA SSD supporting SLC (up to 32GB) and MLC (up to 64GB). The module is equipped with an SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as fail safe BIOS, remote console, CMOS backup, hardware monitor, and watchdog timer.The CMx-SLx is capable of working in the temperature ranges of 0C~60C (standard) and -40C~85C (extended).
Availability and Pricing
Minimum Order Quantity (Unit): 5
Order Lead Time (Days): 168
Latin America Region
North America Region
Asia, Pacific, and Japan:
Australia and New Zealand
Rest of Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Transportation and Warehouse : Rail Transportation
Defense and Space
- Component: Board: PC/104, PC/104-Plus, PC-105
- Operating Systems:
Linux*:Other Linux family*
Linux*:Other Linux family*:Yocto Project*
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:VxWorks*
Microsoft Windows Client*:Windows 10 family*
Microsoft Windows Client*:Windows 10 family*:Windows 10, 64-bit*
Microsoft Windows Client*:Windows 7 family*
Microsoft Windows Client*:Windows 7 family*:Windows 7, 32-bit*
Microsoft Windows Client*:Windows 7 family*:Windows 7, 64-bit*
- End Customer Type:
Included Intel Technology
Intel® Xeon® Processors
Intel® Xeon® Processor E3 v5 Family
Intel® Core™ Processors
6th Generation Intel® Core™ i3 Processors
Legacy Intel® Core™ Processors
