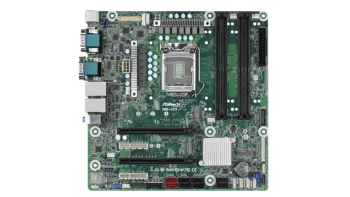

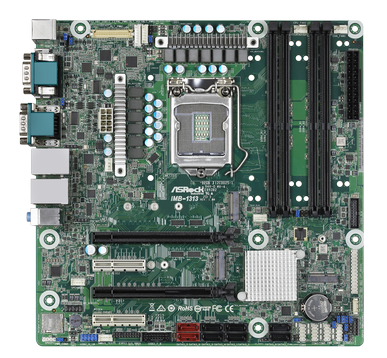

IMB-X1313
About this offer

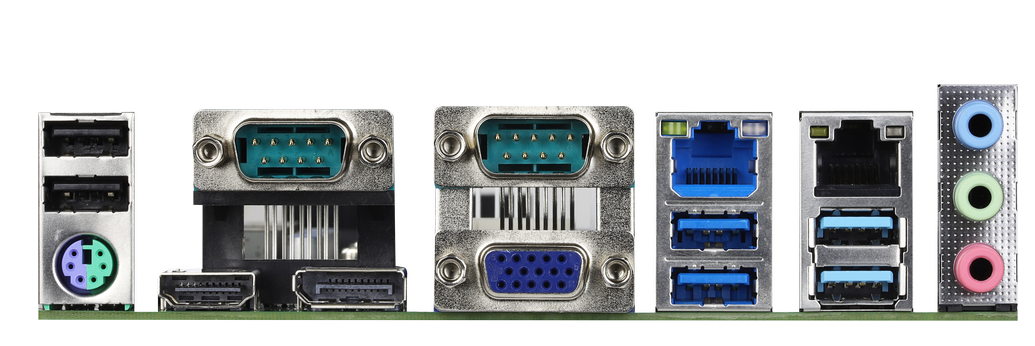

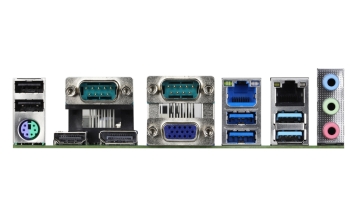

‧Intel® Xeon® W-1200 series & Intel® 10th Gen (Comet lake-S) Core™ Processorswith W480E chipset‧4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9/i7 CPU) /2666 (i5/i3 CPU) / 2400 (Pentium®/ Celeron® CPU), up to 128GB‧Support ECC Long DIMM memory modules‧1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen3, 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E,1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3‧1 x Intel® 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN‧Support Triple display, 1 x DP1.2, 1 x VGA, 1 x LVDS (eDP1.4 optional),1 x HDMI 2.0a‧TPM 2.0 onboard‧ATX-PWR (24+8-pin)
