DVB-T2 Modulator
About this offer

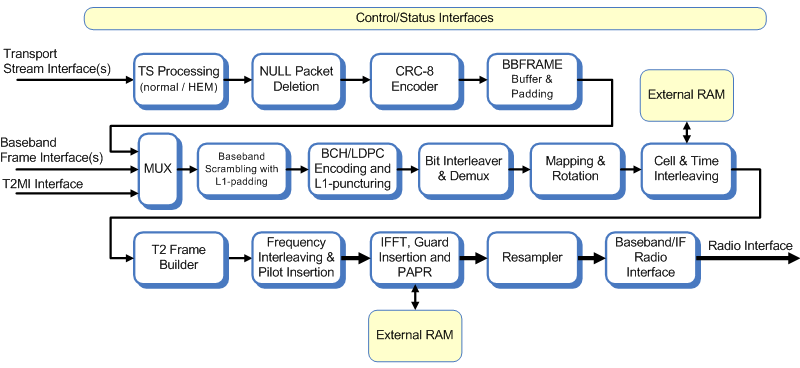

The DVB-T2 Modulator core provides a very efficient FPGA implementation of all functions required to modulate the output from a MPEG-2 transport multiplexer according to the DVB-T2 ETSI EN302 755. The DVB-T2 modulator core is compliant with the specification and fully supports 1K, 2K, 4K, 8K, 16K and 32K COFDM modes. The DVB-T2 core features an integrated normal- and short-frame length BCH/LDPC encoder. L1FIELD padding, encoding and puncturing are performed automatically. Support for single or multiple PLP network configurations, T2-Lite, T2MI and SFN profiles. For more up-to-date information about this core, please visit our website.
Technical Specifications
- Category:
- Software and IP Cores: FPGA Intellectual Property Cores: DSP: Modulation and Demodulation
- End Customer Type:
-
Enterprise
Small and Medium sized Business
Other
Included Intel Technology
Cyclone® III FPGAs
Arria® V FPGAs and SoC FPGAs
Arria® II FPGAs
Stratix® IV FPGAs
Stratix® III FPGAs
Stratix® V FPGAs
Intel® Stratix® 10 FPGAs and SoC FPGAs
Intel Agilex® 7 FPGAs and SoC FPGAs
Stratix® II FPGAs
Intel® Arria® 10 FPGAs and SoC FPGAs
Intel Agilex® 5 FPGAs and SoC FPGAs
Intel® Cyclone® 10 FPGAs
Cyclone® V FPGAs and SoC FPGAs
Intel Agilex® 9 FPGAs and SoC FPGAs
Cyclone® IV FPGAs
Commsonic Ltd
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
Commsonic Ltd
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
Commsonic develops licensable core technology blocks, ASICs, FPGAs and tools for wireless technologies. We are able to offer an array of core Intellectual Property (IP) for today's hot technology. Commsonic offers engineering design services to adapt and optimise its IP core products for customer applications and can assist with turnkey developments of related chip, software and board-level subsystems. Our expertise is primarily in the gate- and power-efficient implementation of physical-layer (PHY) functions.
