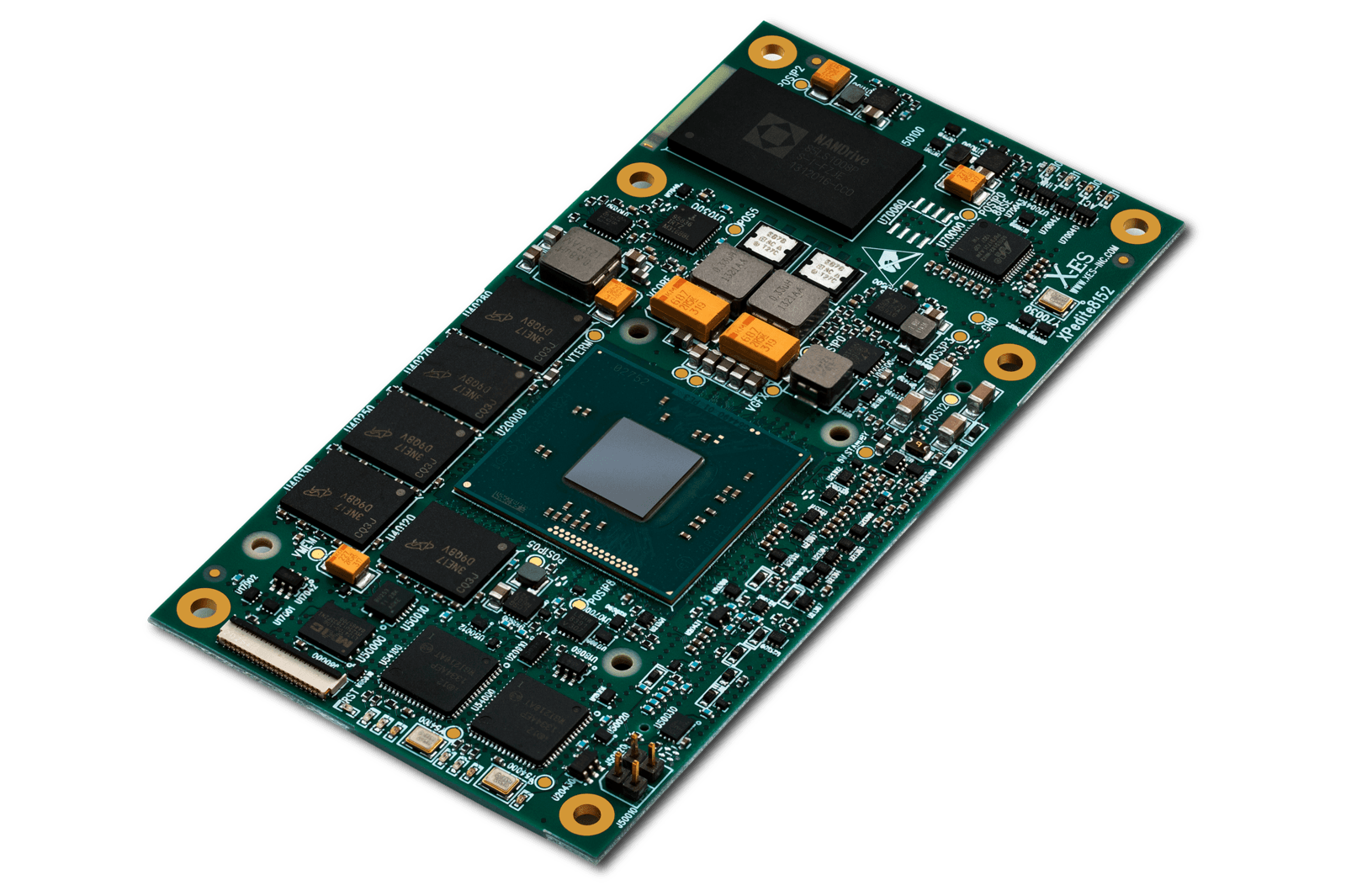

XPedite8152 | Intel® Atom™ E3800 Series Processor-Based Rugged COM Express® Mini Module with SLC NAND Flash
About this offer
The XPedite8152 is a Rugged COM Express® module based on the Intel® Atom™ E3800 series of processors. It is based on the COM Express® Mini form factor, but is extended to 55 mm x 109 mm to provide up to 32 GB of SLC NAND flash as well as 4 GB of DDR3 ECC SDRAM. The XPedite8152 also supports an enhanced Type 10 pinout with one Dual-Mode DisplayPort, one Embedded DisplayPort, two Gigabit Ethernet interfaces, and three SATA interfaces. With built-in test (BIT) support, true configuration and obsolescence management, Class III PCB fabrication and assembly, environmental qualification per MIL-STD-810, as well as many other features, the XPedite8152 is designed and tested for maximum reliability in the most demanding environments and applications that require long life cycles. Wind River VxWorks and Linux Board Support Packages, as well as Microsoft Windows drivers, are available for the XPedite8152. It also supports the open source coreboot bootloader, powered by Intel®’s Firmware Support Package (FSP), to enable ultra-fast boot times and drastically simplify system security. The Intel® Atom™ E3800 series processors are low-power system-on-chip (SoC) processors with integrated graphics and support for up to four cores operating at up to 1.91 GHz. Along with best-in-class performance-per-watt, the E3800 family supports extremely low operating temperatures, and its power-efficient 22 nm technology enables operation in the most demanding high-temperature environments. The XPedite8152 supports the E3825 processor in standard configurations and can be built to support the E3845, E3827, E3826, E3815, and E3805. The E3800 series is the 4th generation Atom™ processor from Intel® and was formerly known as the Bay Trail-I platform and Valleyview processor.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 84
Regional Coverage
Americas:
Latin America Region:
Panama
Nicaragua
Belize
Antigua and Barbuda
Cayman Islands
Bermuda
El Salvador
St. Vincent
Sint Maarten
Haiti
Suriname
St. Kitts and Nevis
Chile
Guadeloupe
Dominican Republic
Turks and Caicos
St. Lucia
Bahamas
Mexico
Guatemala
Curacao
Jamaica
Grenada
Uruguay
Falkland Islands
Peru
Brazil
Antarctica
Dominica
Aruba
Venezuela
Argentina
Honduras
Trinidad and Tobago
French Guiana
St. Barthelemy
Ecuador
Colombia
Guyana
Costa Rica
Paraguay
Martinique
Bolivia
St. Martin
Montserrat
Barbados
Anguilla
North America Region:
US Virgin Islands
Guam
Bonaire
US Minor Outlying Islands
American Samoa
British Virgin Islands
United States
Canada
Puerto Rico
Use Case
High Performance Computing
Industry
Defense and Space
Automotive
Communications
Transportation and Warehouse
Manufacturing
Technical Specifications
- Category:
- Component: Board: COM Express
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
