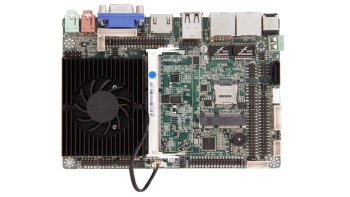

EC3-J19TC-6C
About this offer
Supports: Intel® Bay trail J1900/J1800/N2840 processors, single-channel SO-DIMM, DDR3L 1333MHz, Max8GB. LVDS/EDP2+EDP1/HDMI+VGA, three-display synchronous/asynchronous onboard 1XRealtek RTL8111H/8111G gigabit network card (dual network available); 8XUSB2.0+1XUSB3.0; 6XCOM232, of which COM2 supports RS485/RS422 (optional); 1XSATA, 1XMini-SATA; 1XMini-PCIE (supports Wifi/4G modules) DC 12V power supply; auto-start when power is on, watchdog, and wake on LAN
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1000
Order Lead Time (Days): 90
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Factory Automation
Cloud Computing
Connected Worker
Industry
Education
Automotive
Finance and Insurance
Technical Specifications
- Category:
- Component: Backplanes and Chassis: cPCI
- End Customer Type:
-
Small and Medium sized Business
Enterprise
- ToolKit:
-
Intel® Distribution of OpenVINO™ toolkit
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Visual Technology
