Intel® Trace Analyzer and Collector User and Reference Guide

Charts

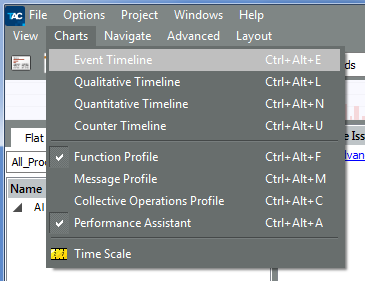

Select the Charts to open various Intel® Trace Analyzer Charts for use during trace analysis.

Chart: Keyboard Shortcut: Description:
Event Timeline
Ctrl+Alt+E
 Displays the individual process activity.
Qualitative Timeline
Ctrl+Alt+L
 Displays event attributes as they occur over time.
Quantitative Timeline
Ctrl+Alt+N
 Displays the parallel behavior of the application.
Counter Timeline
Ctrl+Alt+U
 Displays the values of all counters that are present in the trace file.
Function Profile
Ctrl+Alt+F
 Displays the Function Profile. By default, the Function Profile opens for all newly opened trace files.
Message Profile
Ctrl+Alt+M
 Displays the statistical information on MPI point to point messages.
Collective Operations Profile
Ctrl+Alt+C
 Displays the statistical information on MPI collective operations.
Performance Assistant
Ctrl+Alt+A
 Provides you with the general and detailed information about performance problems.
Time Scale None Displays the time scale of the project.
Parent topic: View Menu Bar
