4.2.4. Intel® FPGA PTC Field Types

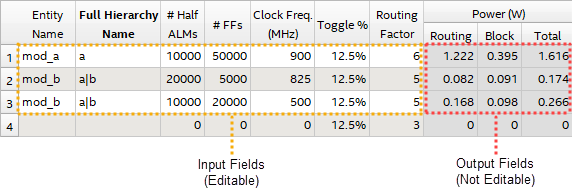

The shading of the editable input fields alternates between white and light gray. Double-click in the field and select a value from the list or type the value.
The output fields in the data entry pages report calculated values, and appear in darker gray. Fixed input fields, and fields that are not applicable have dimmed text.
