11.2.7.1. Back-to-Back User-Controlled Refresh Usage in Arria® 10

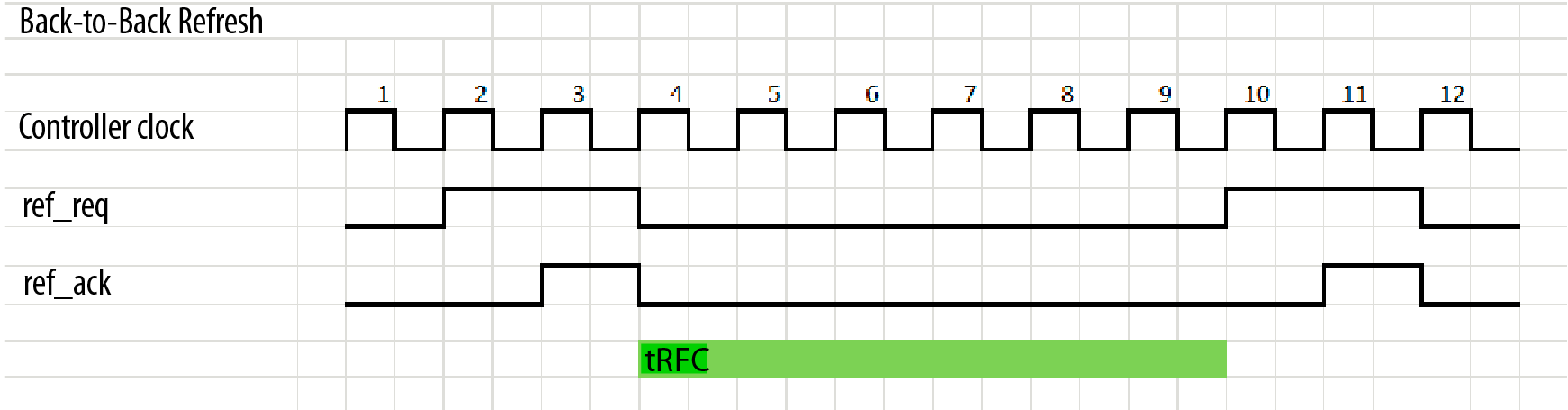

The following diagram illustrates the back-to-back refresh model for optimized hard memory controller (HMC) performance in Arria® 10 devices.

For optimal performance, ensure that you deassert the Refresh request after receiving the acknowledgement pulse. You can implement a timer to track tRFC before asserting the next Refresh request. Failure to deassert the Refresh request can delay memory access to the rank not in refresh.
