Remote Inference End-to-End Use Case
This tutorial describes how to use the basic fleet management server to set object detection inference on EI for AMR remotely at the OpenVINO™ model server when its battery is lower than the 60% threshold. If the battery is equal to or greather than 60%, the inference is set to be done locally at EI for AMR.
Prerequisites:
The server is configured with the Get Started Guide for Robot Orchestration.
The robot is onboarded with the Device Onboarding End-to-End Use Case.

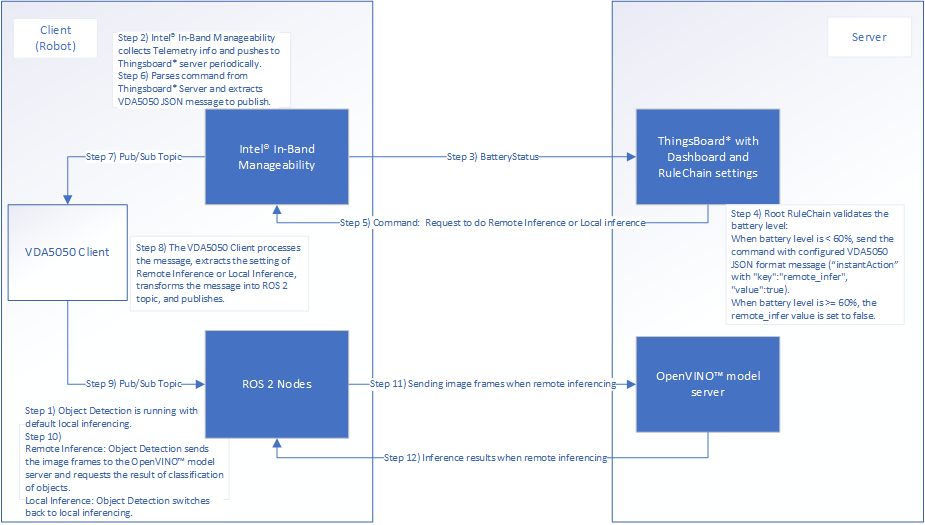

Collaboration Diagram
When a robot’s battery level is less than 60%, basic fleet management tells the robots to do Remote Inference. When the battery level is back to equal or greater than 60%, basic fleet management tells the robots to do Local Inference. The following diagram depicts the steps.
Check Object Detection with Local or Remote Inference
On the robot
Example logs when local inference is performed:
[object_detection_node-3] [object_detection_node-3] [ INFO ] <LocalInference> Done frame: 5516 . Processed in: 0.279625 ms [object_detection_node-3] [object_detection_node-3] [ INFO ] <LocalInference> Label tv [object_detection_node-3] [object_detection_node-3] [ INFO ] <LocalInference> Done frame: 5517 . Processed in: 0.240508 ms [object_detection_node-3] [object_detection_node-3] [ INFO ] <LocalInference> Label tv
Example logs when remote inference is performed:
[object_detection_node-3] [INFO] [1643382428.696445729] [object_detection]: switchToRemoteInfCallback [object_detection_node-3] [INFO] [1643382428.720869717] [object_detection]: <RemoteInference> Sending Image [object_detection_node-3] [INFO] [1643382428.854300655] [object_detection]: <RemoteInference> Sending Image [remote_inference-4] [INFO] [1643382428.863697253] [remote_inference]: <RemoteInference> Receiving video frame [object_detection_node-3] [INFO] [1643382428.882912426] [object_detection]: <RemoteInference> Sending Image [remote_inference-4] [INFO] [1643382428.895332223] [remote_inference]: <RemoteInference> Processing and inference took 31.16 [object_detection_node-3] [INFO] [1643382428.896419726] [object_detection]: <RemoteInference> Detected Objects Received [object_detection_node-3] [INFO] [1643382428.896478543] [object_detection]: <RemoteInference> Label : tv [remote_inference-4] [INFO] [1643382428.897817637] [remote_inference]: <RemoteInference> Receiving video frame [object_detection_node-3] [INFO] [1643382428.921090305] [object_detection]: <RemoteInference> Sending Image [remote_inference-4] [INFO] [1643382428.922211172] [remote_inference]: <RemoteInference> Processing and inference took 23.68
