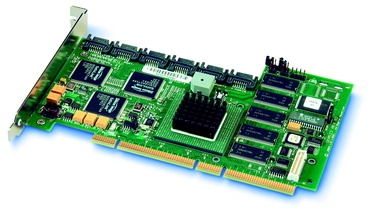

Intel® RAID Controller SRCS16Overview
A High-Performance RAID Solution from an Affordable 6-Port Serial ATA RAID Controller
Built around the Intel® 80302 I/O processor and designed to deliver up to 150MB per second bus speed via point-to-point thin-cable connections, the Intel RAID Controller SRCS16 provides a versatile, high-performance solution for mission-critical server and workstation environments.
Product information
-
Download product brief
File Type/Size: PDF 137KB
- View recommended configurations and order codes
- Ad builder
- View Intel® RAID tutorial
- Compatibility information
- Installation and use
Features and benefits
| Intel® 80302 I/O processor at 100 MHz | Outstanding RAID performance |
|---|---|
| Six independent Serial ATA ports | High-speed data access across all ports simultaneously |
| Designed for 64-bit/66MHz PCI 2.2 interface | High data-transfer rate, increased availability, and increased flexibility |
| 64MB of embedded ECC SDRAM | Data integrity and performance |
| Support for RAID levels 0, 1, 5, 10, and 50 | Flexibility for optimizing performance and fault tolerance in a variety of solutions |
| Serial ATA II extensions and SAF-TE enclosure-management support | Provides hot-swap drive support and drive status/identification for Serial ATA drives |
| Optional battery-backup unit | Data reliability |
| Intel® RAID Software: Intel RAID BIOS Console, Intel RAID Web Console, and Intel RAID Flash Utilities | Ease of management and monitoring |
| Background initialization and instant availability | Immediate accessibility to the host operating system and minimal build time |
| Three-year limited warranty | Peace of mind |
