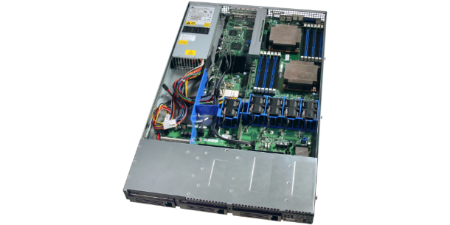

Intel® Server System SR1600UR Family

1U rack-optimized, highly integrated server systems for high density, energy efficient applications

- Tagged AsIntel® Server System SR1600UR, Server Systems, Intel® Server System SR1600URHS, 1U Rack Server Systems

Key features

Supports up to two Intel® Xeon® Processor 5600 series¹
Highly scalable DDR3 memory (12 DIMMS)
24 lanes of fast PCI Express* 2.0 plus PCI Express expansion modules and optional PCI-X slots
Fixed or hot-swap hard drive configurations
Supports server power capping via Intel® Intelligent Power Node Manager²
5 non-redundant dual-rotor fans
600-watt high-efficiency fixed power supply

Target applications

High performance computing (compute, I/O, and management nodes), video server, virtualization platform, and general purpose data center building blocks.

High-density compute power in a 1U chassis

The Intel® Server System SR1600UR is designed for high-density compute power in a 1U rack chassis. Available in either a fixed or hot-swap configuration, the Intel Server System SR1600UR feature set includes 12 DIMMs DDR3 memory, high speed PCI Express* 2.0 I/O slots, and integrated RAID, for high performance computing (HPC).

Intel® Server System SR1600UR Family information and resources

Product specifications and compatible products lists

Board order code	SR1600URR	SR1600URHSR
Essentials
Limited 3-year Warranty	Yes	Yes
Extended Warranty Available for Purchase	Yes	Yes
Chassis Form Factor	1U Rack	1U Rack
Chassis Dimensions	1.7" x 16.93" X 27.25"	1.7" x 16.93" X 27.25"
Socket	LGA1366	LGA1366
Rack-Friendly Board	Yes	Yes
Power Supply	600W power supply	600W power supply
Power Supply Type	AC	AC
Heat Sink Included	Included	Included
Included Items	(3) Fixed drive carriers; (5) Fixed non-redundant fans; (1) Full-height PCI Express riser; (1) Fixed 600W power supply; (1) Cabled front panel; (1) Fan board; (3) SATA cable; (2) Processor heatsink; (1) Pair rack handles	(3) Drive carriers; (1) Bridge board; (1) Fixed 600W power supply; (5) Fixed non-redundant fans; (1) Full-height PCI Express riser; (1) Standard control panel; (2) Processor heatsink; (1) Pair rack handles
of 3.5" Hard Drives	3	3
3.5" Hard Drive Support	Supports up to three fixed SATA drives	Supports up to three SATA/SAS drives
Intel® Server Management Software	Yes	Supports up to three SATA/SAS drives
Memory Specifications
Memory Types	DDR3 ECC UDIMM, RDIMM	DDR3 ECC UDIMM, RDIMM
# of DIMMs	12	12
Max Memory Size (dependent on memory type)	192 GB	192 GB
Graphics Specifications
Integrated Graphics	Yes	Yes
Expansion Options
PCIe x16 Gen 2.x	1	1
IO Expansion x4 Gen 1.x	1	1
I/O Specifications
# of USB Ports	5	5
# of SATA Ports	6	6
RAID Configuration	Upgradeable options for SW and HW RAID support	ASR1500SASBP offers SW RAID support
# of Serial Ports	2	2
Integrated LAN	Dual, GbE	Dual, GbE
Advanced Technologies
Intel® Remote Management Module Support	AXXRMM3	AXXRMM3
Integrated BMC with IPMI	IPMI 2.0	IPMI 2.0
Intel® Intelligent Power Node Manager	Yes	Yes
Compatible Products
Compatible RAID	Intel® RAID Activation Key AXXRAKSW5 Intel® Integrated Server RAID Module AXXSASIOMOD Intel® Integrated Server RAID Module AXXRMS2MH080 Intel® RAID Controller RS25DB080	Intel® RAID Activation Key AXXRAKSW5 Intel® Integrated Server RAID Module AXXSASIOMOD Intel® Integrated Server RAID Module AXXRMS2MH080 Intel® RAID Controller RS25DB080
Compatible Processors	Intel® Xeon® Processor E5502 (4M Cache, 1.86 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5503 (4M Cache, 2.00 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5506 (4M Cache, 2.13 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5507 (4M Cache, 2.26 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5530 (8M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5540 (8M Cache, 2.53 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor X5550 (8M Cache, 2.66 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5560 (8M Cache, 2.80 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5570 (8M Cache, 2.93 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5520 (8M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5520 (8M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5504 (4M Cache, 2.00 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor L5506 (4M Cache, 2.13 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor L5508 (8M Cache, 2.00 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5518 (8M Cache, 2.13 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5530 (8M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor X5680 (12M Cache, 3.33 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5667 (12M Cache, 3.06 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5670 (12M Cache, 2.93 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5660 (12M Cache, 2.80 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5650 (12M Cache, 2.66 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5630 (12M Cache, 2.53 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5620 (12M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5640 (12M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5630 (12M Cache, 2.13 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5609 (12M Cache, 1.86 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor X5677 (12M Cache, 3.46 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor L5638 (12M Cache, 2.00 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5618 (12M Cache, 1.87 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5645 (12M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor X5675 (12M Cache, 3.06 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5649 (12M Cache, 2.53 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5607 (8M Cache, 2.26 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5606 (8M Cache, 2.13 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5603 (4M Cache, 1.60 GHz, 4.80 GT/s Intel® QPI)	Intel® Xeon® Processor E5502 (4M Cache, 1.86 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5503 (4M Cache, 2.00 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5506 (4M Cache, 2.13 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5507 (4M Cache, 2.26 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5530 (8M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5540 (8M Cache, 2.53 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor X5550 (8M Cache, 2.66 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5560 (8M Cache, 2.80 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5570 (8M Cache, 2.93 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5520 (8M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5520 (8M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5504 (4M Cache, 2.00 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor L5506 (4M Cache, 2.13 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor L5508 (8M Cache, 2.00 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5518 (8M Cache, 2.13 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5530 (8M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor X5680 (12M Cache, 3.33 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5667 (12M Cache, 3.06 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5670 (12M Cache, 2.93 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5660 (12M Cache, 2.80 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor X5650 (12M Cache, 2.66 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5630 (12M Cache, 2.53 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5620 (12M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5640 (12M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5630 (12M Cache, 2.13 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5609 (12M Cache, 1.86 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor X5677 (12M Cache, 3.46 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor L5638 (12M Cache, 2.00 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor L5618 (12M Cache, 1.87 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5645 (12M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor X5675 (12M Cache, 3.06 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5649 (12M Cache, 2.53 GHz, 5.86 GT/s Intel® QPI) Intel® Xeon® Processor E5607 (8M Cache, 2.26 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5606 (8M Cache, 2.13 GHz, 4.80 GT/s Intel® QPI) Intel® Xeon® Processor E5603 (4M Cache, 1.60 GHz, 4.80 GT/s Intel® QPI)
Compatible Softwares	VMware vSphere Essentials VMW4ESS* VMware vSphere Essentials Plus VMW4ESSPLUS* VMware vSphere Standard VMW4STD* VMware vSphere Advanced VMW4ADV* VMware vSphere Enterprise Plus VMW4ENTPLUS* VMware vCenter Standard VMWVCSTD* Symantec Backup Exec 2010* Symantec Backup Exec 2010 for Windows Small Business Server* Symantec Backup Exec 2010 Microsoft Exchange Suite* Symantec Backup Exec 2010 Microsoft SQL Suite* Symantec Backup Exec 2010 Windows Remote Agent Suite* Symantec Backup Exec 2010 VMware Infrastructure Suite* Symantec Backup Exec 2010 Microsoft Hyper-V Suite* Symantec Backup Exec 2010 Deduplication Suite* Symantec Backup Exec 2010 Deduplication and Archiving Suite*	VMware vSphere Essentials VMW4ESS* VMware vSphere Essentials Plus VMW4ESSPLUS* VMware vSphere Standard VMW4STD* VMware vSphere Advanced VMW4ADV* VMware vSphere Enterprise Plus VMW4ENTPLUS* VMware vCenter Standard VMWVCSTD* Symantec Backup Exec 2010* Symantec Backup Exec 2010 for Windows Small Business Server* Symantec Backup Exec 2010 Microsoft Exchange Suite* Symantec Backup Exec 2010 Microsoft SQL Suite* Symantec Backup Exec 2010 Windows Remote Agent Suite* Symantec Backup Exec 2010 VMware Infrastructure Suite* Symantec Backup Exec 2010 Microsoft Hyper-V Suite* Symantec Backup Exec 2010 Deduplication Suite* Symantec Backup Exec 2010 Deduplication and Archiving Suite*
Network Interface Cards	Intel® 10 Gigabit CX4 Dual Port Server Adapter Intel® 10 Gigabit XF LR Server Adapter Intel® 10 Gigabit XF SR Dual Port Server Adapter Intel® 10 Gigabit XF SR Server Adapter Intel® Gigabit EF Dual Port Server Adapter Intel® Gigabit ET Dual Port Server Adapter Intel® Gigabit ET Quad Port Server Adapter Intel® PRO/1000 PF Dual Port Server Adapter Intel® PRO/1000 PF Server Adapter Intel® PRO/1000 PT Dual Port Server Adapter Intel® PRO/1000 PT Quad Port Low Profile Server Adapter Intel® PRO/1000 PT Server Adapter	Intel® 10 Gigabit CX4 Dual Port Server Adapter Intel® 10 Gigabit XF LR Server Adapter Intel® 10 Gigabit XF SR Dual Port Server Adapter Intel® 10 Gigabit XF SR Server Adapter Intel® Gigabit EF Dual Port Server Adapter Intel® Gigabit ET Dual Port Server Adapter Intel® Gigabit ET Quad Port Server Adapter Intel® PRO/1000 PF Dual Port Server Adapter Intel® PRO/1000 PF Server Adapter Intel® PRO/1000 PT Dual Port Server Adapter Intel® PRO/1000 PT Quad Port Low Profile Server Adapter Intel® PRO/1000 PT Server Adapter
Compatible Spares, Accessories, and Services	Bridge Board Spare FURBRIDGE Mechanical Spares Kit FSRTCHSPR 3.5" Drive Carrier FXX10DVCARBLK Fan Kit FXX1UFAN Passive Thermal Solution BXSTS100P North America Power cable FPWRCABLENA 600W Power Supply Module FSR1600PS Black Bezel for Standard Control Panel ADWBEZBLACK Black Bezel for Local Control Panel ADWLCDBEZEL RJ45 To DB9 Cable Kit AXXRJ45DB92 Local Control Panel Accessory Kit AXLCPRACK2 SATA/SAS Backplane ASR1500SASBP Dual Gigabit Ethernet I/O Expansion Module AXXGBIOMOD InfiniBand I/O Expansion Module AXXIBIOMOD Quad Port Gigabit Ethernet I/O Expansion Module AXX4GBIOMOD2 Dual Port 10 Gigabit Ethernet I/O Expansion Module AXX10GBIOMOD Single Port QDR InfiniBand I/O Module AXXIBQDRIOMOD Remote Management Module 3 AXXRMM3 SATA Slim-line Optical DVD Drive AXXSATADVDROM SATA Slim-line Optical DVD +/- Re-writeable Drive AXXSATADVDRWROM Tool-less Full Extending Rail Kit AXXHERAIL2 Fixed Mount Brackets AXXBRACKETS Cable Management Arm AXXRACKARM2 Basic Rail Kit AXXBASRAIL13 Dual Processor System Extended Warranty One Slot PCI-Express Passive Riser FSR16XXRISER Dual Processor System On-Site Repair	Bridge Board Spare FURBRIDGE Mechanical Spares Kit FSRTCHSPR 3.5" Drive Carrier FXX10DVCARBLK Fan Kit FXX1UFAN Passive Thermal Solution BXSTS100P North America Power cable FPWRCABLENA Black Bezel for Standard Control Panel ADWBEZBLACK Black Bezel for Local Control Panel ADWLCDBEZEL RJ45 To DB9 Cable Kit AXXRJ45DB92 Local Control Panel Accessory Kit AXLCPRACK2 SATA/SAS Backplane ASR1500SASBP SATA Backplane ASR1500PASBP Dual Gigabit Ethernet I/O Expansion Module AXXGBIOMOD InfiniBand I/O Expansion Module AXXIBIOMOD Quad Port Gigabit Ethernet I/O Expansion Module AXX4GBIOMOD2 Dual Port 10 Gigabit Ethernet I/O Expansion Module AXX10GBIOMOD Remote Management Module 3 AXXRMM3 SATA Slim-line Optical DVD Drive AXXSATADVDROM SATA Slim-line Optical DVD +/- Re-writeable Drive AXXSATADVDRWROM Tool-less Full Extending Rail Kit AXXHERAIL2 Fixed Mount Brackets AXXBRACKETS Cable Management Arm AXXRACKARM2 Basic Rail Kit AXXBASRAIL13 Dual Processor System Extended Warranty One Slot PCI-Express Passive Riser FSR16XXRISER Dual Processor System On-Site Repair
Compatible SSD’s	Intel® SSD 320 Series (160GB, 2.5in SATA 3Gb/s, 25nm, MLC)	No data available
Tested Component Lists
Tested Memory, Hard Drive, and RAID Adapter Lists	SR1600UR	SR1600URHSR
Tested Operating System List	SR1600UR Family
