Intel® NUC Board D33217GKE

Intel® NUC Board D33217GKE

Intel® NUC Board D33217GKE

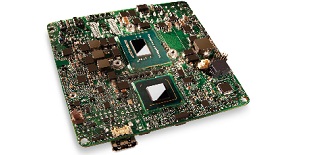

Intel® NUC Board D33217GKE is a tiny 4" x 4" x 1.5" with the power of the 3rd generation Intel® Core™ i3-3217U processor.

The board features dual HDMI* ports to offer dual display capabilities along with five USB ports and an Intel® gigabit Ethernet adapter to provide expandability and scale unseen in this form factor. Dual mini-PCIe* slots also ensure flexible support for wireless and SSD configurations. Two SO-DIMMs for expandability up to 16 GB of memory ensure that you don’t miss out on anything.

Product Brief:  Preview |  Download

Supported System Types:

systemtype

More Information

Product information

Features and configurations >

Interactive layout >

360° view >

BIOS and driver updates >

Technical documentation >

What’s in the box >

Product support page >

View the kit >

Features and Configurations

Form factor

UCFF

AA# (Altered Assembly)

G69901-200

BIOS ID string

GKPPT10H.86A

Processor

 Intel® Core™ i3 3217-U (soldered down) with active heat sink

Memory

 Two SO-DIMM slots for 1333/1600 MHz memory support
System memory

Chipset

 Intel® QS77 Express Chipset

Graphics

 Dual HDMI* ports supporting HDMI 1.4a outputs for dual independent display

Audio

Intel® High Definition Audio (Intel® HD Audio) in the following configuration:

Eight-channel (7.1) digital audio via two HDMI 1.4a outputs

LAN support

 Integrated Intel® PRO 10/100/1000 Network Connection

Peripheral interfaces

 Five USB 2.0 ports (three external ports, two via internal header)

Expansion capabilities

Full-size mini PCI Express* with mSATA support

Half-size mini PCI Express
Included in the box Fan heat sink
Warranty

3-year warranty (BOX/BLK)

Standard warranty replacement (SWR)
