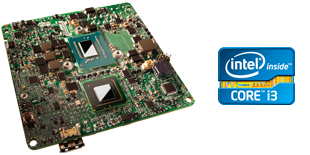

Next Unit of Computing Board D33217CK

Next Unit of Computing Board D33217CK

Next Unit of Computing Board D33217CK

Delivering the power of the 3rd generation Intel® Core™ i3 processor in a small 4” x 4” x 2” form factor, the Next Unit of Computing Board D33217CK by Intel offers superior processing and stunning graphics with advanced technology.

Featuring dual HDMI ports for dual display capabilities, three USB ports, and a Thunderbolt™ adapter for expandability and scalability, the board’s dual mini-PCIe* slots also ensure flexible support for wireless and solid-state drive (SSD) configurations. Two small outline dual in-line memory modules (SO-DIMMs) for expandability of up to 16 GB of memory ensure that you don’t miss out on anything.

Product Brief:  Preview |  Download

Supported System Types:

systemtype

More Information

Product information

Features and configurations >

Interactive layout >

Latest BIOS and drivers >

Technical documentation >

Product support page >

Features and Configurations

Form factor

UCFF

AA# (Altered Assembly)

G69977-200

BIOS ID string

GKPPT10H.86A

Processor

 Intel® Core™ i3 3217-U (soldered down) with active heat sink

Memory

Two SO-DIMM slots for 1333/1600 MHz memory support

Chipset

Intel® QS77 Express Chipset
Display

HDMI port supporting HDMI 1.4a output

Thunderbolt™ port supporting DisplayPort 1.1a

Audio

Intel® High Definition Audio (Intel® HD Audio) in the following configuration:

8-channel (7.1) digital audio via one HDMI 1.4a output and/or via one Thunderbolt connector (DisplayPort 1.1a)
Peripheral interfaces

Thunderbolt connector

Five USB 2.0 ports (3 external ports, 2 via internal header)

Expansion capabilities

Full-size mini-PCI Express* with mSATA support

Half-size mini-PCI Express
Included in the box

Fan heat sink
Warranty

3-year warranty (BOX/BLK)

Standard warranty replacement (SWR)
