Key Features
- 8 or 12 3.5” hot-swap hard drives
- One 750W AC Platinum common redundant power supplies
- Five 80mm fans for enterprise level cooling
- Intel® Server Board S2600GL
- Supports the Intel® Xeon® processor E5-2600 product family
- 16 memory sockets support LR/U/R-DIMMs, delivering up to 512 GB of memory capacity
- Two PCIe* Gen3 x24 Super Slots for superb I/O flexibility
- Energy efficient spread core design with Intel® Efficient Power Technology
- Onboard flash boot support includes eUSB SSD and SATA DOM
- Intel® Trusted Platform Module (Intel® TPM) header for Intel® Trusted Execution Technology (Intel® TXT) support
Available expansion options include:
- Intel® RAID C600 upgrade key including options for up to eight SAS/SATA ports plus two SATA 6Gb ports
- Intel® Remote Management Module 4
- Intel® I/O Expansion Modules
Incredible Server Performance and Flexibility in an Energy Efficient Custom Design

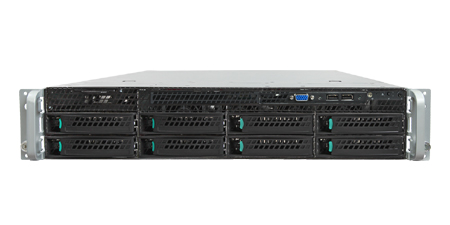

The Intel® Server System R2300GL family takes full advantage of the new Intel® Xeon® processor E5-2600 product family capabilities with the Intel® Server Board S2600GL family. The Intel Server System R2300GL family features an energy efficient spread core design and maximum (512 GB) memory capacity with up to 16 DIMMS, S2600GL-based rack-optimized server systems deliver unmatched performance, I/O capacity, and flexibility in an expansive family of 1U and 2U systems for the most demanding enterprise data center, cloud, or high performance computing (HPC) environments.
The Intel® Server System R2300GL family makes use of several new Intel® Server Board Technology Innovations exclusively available on Intel® Server Products. Intel® Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management; Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency; and Intel® Efficient Power Technology helps improve power efficiency and reliability.
Target Applications
For data center, cloud, or HPC customers who require a no compromise, rack-optimized solution, the R2300GL family delivers maximum (512 GB) memory capacity, I/O expansion, and powerful performance in an energy efficient design.
Intel® Server System R2300GL Family Information and Resources
Support components
Performance optimization and use >
Drivers and downloads >
Resource and utilities >
Troubleshooting the R2300GL family >
Product Specifications
| System Order Code | R2308GL4GS |
RS2312GL4GS |
|---|---|---|
Essentials |
|
|
Limited 3-year warranty |
Yes |
Yes |
Extended warranty available for purchase |
Yes |
Yes |
On-site repair (select countries) |
|
|
Chassis form factor |
Rack |
Rack |
Chassis dimensions |
3.44" x 16.93" x 27.95" |
3.44" x 16.93" x 27.95" |
Board form factor |
Custom 16.5x16.5 |
Custom 16.5x16.5 |
Rack rails included |
Yes |
Yes |
Socket |
Socket R |
Socket R |
Max CPU configuration |
2 |
2 |
Rack-friendly board |
Yes |
Yes |
Power supply |
750W fixed power supply (Platinum efficiency) |
750W fixed power supply (Platinum efficiency) |
Power supply type |
AC |
AC |
# of power supply |
1 |
1 |
Redundant fans |
Yes |
Yes |
Redundant power |
Yes |
Yes |
Heat sink included |
Yes |
Yes |
Included items |
Integrated server system with 16 DIMM board and 8 SATA ports. 1 Intel® Server Board S2600GL4 in 2U chassis (16 DIMM), 1 airduct, 1 standard control panel, front 1xVGA and 2xUSB in dedicated tray, support for 2x SSD mounting on airduct, 8 3.5” hot-swap drive carriers, 2 SFF8088 to SFF8088 cables, 2 CPU heat sinks, redundant and hot-swap cooling fans, 2 risers: 3x8 PCIe* slots on each (2xFHFL 1xFHHL), RKSATA8 RAID upgrade key, 1 750W AC power supply, Intel® Remote Management Module 4, 1 set value rails |
Integrated server system with 16 DIMM board and open storage configuration. 1 Intel® Server Board S2600GL4 in 2U chassis, 1 airduct, 1 control panel on rack handle, 2 mounting points for 2x SSD on airduct, 12 3.5” hot-swap drive carriers, 3 SFF8088 to SFF8088 cables, 2 CPU heat sinks, 5 redundant and hot-swap cooling fans, 2 risers with 3 x8 slots (2xFHFL 1xFHHL on each riser), 1 750W AC PSU, full Intel® Remote Management Module 4, 1 set value rails |
# of 3.5" hard drives |
8 |
12 |
3.5" hard drive support |
Supports 8 hot-swap 3.5" SATA 6G drives standard, SAS 6G with activation key/discrete controller |
Supports 12 hot-swap 3.5" SATA 6G and SAS 6G drives standard |
Intel® Server Management software |
Yes |
Yes |
Memory Specifications |
||
Memory types |
DDR3 ECC UDIMM 1333, RDIMM 1333, LRDIMM 1333 |
DDR3 ECC UDIMM 1333, RDIMM 1333, LRDIMM 1333 |
# of DIMMs |
16 |
16 |
Graphics Specifications |
||
Integrated graphics |
Yes |
Yes |
Expansion Options |
||
PCIe* x8 Gen 3 |
6 |
6 |
PCIe x16 Gen 3 |
2 |
2 |
Intel® I/O Expansion Module PCIe x8 Gen 3 |
1 |
1 |
Intel® Internal I/O Expansion Module PCIe x8 Gen 3 |
1 |
1 |
I/O Specifications |
||
# of USB ports |
5 |
5 |
# of SATA ports |
10 |
10 |
RAID configuration |
Software RAID 1,0,10 optional 5 |
Software RAID 1,0,10 optional 5 |
# of serial ports |
2 |
2 |
Integrated LAN |
4x 1GbE |
4x 1GbE |
# of LAN ports |
4 |
4 |
Optical drive support |
Yes |
Yes |
Integrated SAS ports |
8 |
8 |
Embedded USB (eUSB) solid-state drive option |
Yes |
Yes |
Advanced Technologies |
||
True |
True |
|
Integrated BMC with IPMI |
IPMI 2.0 |
IPMI 2.0 |
Intel® TPM Version |
2 |
2 |
Yes |
Yes |
|
Intel® On-Demand Redundant Power |
Yes |
Yes |
All capabilities |
All capabilities |
|
All capabilities |
All capabilities |
|
All capabilities |
All capabilities |
|
Compatible Products Lists |
||
Compatible RAID |
||
Compatible processor |
|
|
Compatible software |
|
|
Compatible spares and accessories |
Spare 3.5in Hot-Swap HDD Carriers FXX35HSADPB 1UHeat Sink FXXEA91X91HS (Ex-Al 91mmx91mm) Dual Port Intel® X540-BT2 10GbE I/O Module AXX10GBTWLIOM Spare Board F2U8X35HSBP (for 2U 8x3.5in Hot-Swap Backplane) Dual Port Intel® 82599EB 10GbE I/O Module AXX10GBNIAIOM Trusted Platform Module AXXTPME5 Intel® Integrated RAID Module RMS25PB040 Intel® Integrated RAID Module RMS25JB040 Intel® Integrated RAID Module RMS25KB080 Intel® RAID C600 Upgrade Key RKSATA8 460W Common Redundant Power Supply FXX460GCRPS (Gold-Efficiency) 1U/2U Cable Management Art AXX1U2UCMA Intel® Integrated RAID Module RMS25PB080 Intel® RAID C600 Upgrade Key RKSATA4R5 Intel® Integrated RAID Module RMT3PB080 Intel® Integrated RAID Module RMS25JB080 Intel® Integrated RAID Module RMS25KB040 SATA Slim-line Optical DVD Drive AXXSATADVDROM 750W Common Redundant Power Supply FXX750PCRPS (Platium-Efficiency) Intel® Integrated RAID Module RMS25CB080 Intel® Integrated RAID Module RMS25CB040 Intel® RAID C600 Upgrade Key RKSAS8 Remote Management Module AXXRMM4LITE 2U PCIE/X Riser A2ULPCIXRISER (PCI-X) 2U PCIE Riser A2UL16RISER (x16) Intel® Integrated RAID Module RMT3CB080 Intel® RAID C600 Upgrade Key RKSATA8R5 2U PCIE Riser A2UL8RISER (3 Slot) 1U/2U 2 post Brackets AXX2POSTBRCKT (Hard Mount) SATA Slim-line Optical DVD +/- Re-writeable Drive AXXSATADVDRWROM Remote Management Module AXXRMM4 Quad Port Intel® I350-AE4 GbE I/O Module AXX4P1GBPWLIOM Intel® RAID C600 Upgrade Key RKSAS4 |
Intel® Integrated RAID Module RMS25PB040 Intel® Integrated RAID Module RMS25CB080 Intel® Integrated RAID Module RMS25JB080 Intel® RAID C600 Upgrade Key RKSATA4R5 1U/2U 2 post Brackets AXX2POSTBRCKT (Hard Mount) Spare 3.5in Hot-Swap HDD Carriers FXX35HSADPB 2U PCIE Riser A2UL8RISER (3 Slot) Dual Port Intel® X540-BT2 10GbE I/O Module AXX10GBTWLIOM Intel® Integrated RAID Module RMS25KB080 Remote Management Module AXXRMM4 750W Common Redundant Power Supply FXX750PCRPS (Platium-Efficiency) Intel® RAID C600 Upgrade Key RKSATA8 Intel® RAID C600 Upgrade Key RKSATA8R5 Intel® RAID C600 Upgrade Key RKSAS4 Intel® RAID C600 Upgrade Key RKSAS8R5 2U PCIE Riser A2UL16RISER (x16) 1UHeat Sink FXXEA91X91HS (Ex-Al 91mmx91mm) Spare Board F2U12X35HSBP (for 2U 12x3.5in Hot-Swap Backplane) Quad Port Intel® I350-AE4 GbE I/O Module AXX4P1GBPWLIOM Trusted Platform Module AXXTPME5 Intel® Integrated RAID Module RMS25JB040 1U/2U Cable Management Art AXX1U2UCMA Intel® Integrated RAID Module RMT3CB080 2U PCIE/X Riser A2ULPCIXRISER (PCI-X) Intel® Integrated RAID Module RMT3PB080 Intel® Integrated RAID Module RMS25CB040 Intel® RAID C600 Upgrade Key RKSAS4R5 Remote Management Module AXXRMM4LITE 460W Common Redundant Power Supply FXX460GCRPS (Gold-Efficiency) Dual Port Intel® 82599EB 10GbE I/O Module AXX10GBNIAIOM Intel® Integrated RAID Module RMS25PB080 |
Compatible SSD |
|
|
Compatible network interface card |
|
|
