Key Features
- Four 3.5” hot-swap hard drives
- 460W Gold efficiency common redundant power supply
- Six dual rotor redundant cooling fans
- Intel® Server Board S2600GL
- Supports the Intel® Xeon® processor E5-2600 product family
- 16 memory sockets support LR/U/R-DIMMs delivers up to 512 GB of memory capacity
- Two PCIe* Gen3 x24 Super Slots for superb I/O flexibility
- Energy efficient spread core design with Intel® Efficient Power Technology
- Onboard flash boot support includes eUSB SSD and SATA DOM
- Intel® Trusted Platform Module (Intel® TPM)
- Intel® Remote Management Module 4
Incredible Server Performance and Flexibility in an Energy Efficient Custom Design

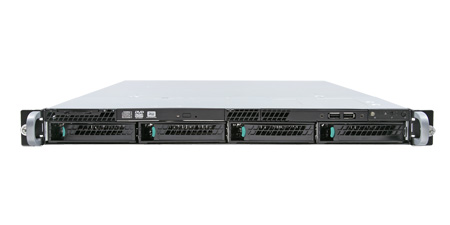

The Intel® Server System R1300GL family takes full advantage of the new Intel® Xeon® processor E5-2600 product family capabilities with the Intel® Server Board S2600GL family. The Intel Server System R1300GL features an energy efficient spread core design and maximum (512 GB) memory capacity with up to 16 DIMMS, S2600GL-based rack-optimized server systems deliver unmatched performance, I/O capacity, and flexibility in an expansive family of 1U and 2U systems for the most demanding enterprise data center, cloud, or high performance computing (HPC) environments.
The Intel® Server System R1300GL family makes use of several exclusive new Intel® Server Board Technology Innovations exclusively available on Intel® Server Products. Intel Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management; Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency; and Intel® Efficient Power Technology helps improve power efficiency and reliability.
Target Applications
For data center, cloud, or HPC customers who require a no compromise, rack-optimized solution, the S2600GL family delivers maximum (512 GB) memory capacity, I/O expansion, and powerful performance in an energy efficient design.
Intel® Server System R1300GL Family Information and Resources
Related content
Product Specifications
| System Order Code | R1304GL4DS9 |
|---|---|
| Essentials | |
Limited 3-year warranty |
Yes |
Extended warranty available for purchase |
Yes |
Chassis form factor |
1U Rack |
Chassis dimensions |
1.75" x 16.93" x 27.95" |
Board form factor |
Custom 16.5x16.5 |
Rack rails included |
Yes |
Socket |
Socket R |
Max CPU configuration |
2 |
Rack-friendly board |
Yes |
Power supply |
460W AC Power Supply (Gold Efficiency) |
Power supply type |
AC |
# of power supply |
1 |
Redundant fans |
Supported |
Redundant power |
Supported |
Heat sink included |
Yes |
Backplanes |
Included |
Included items |
Integrated Intel® Server System supporting 16 DIMMs and 8 SATA ports, Includes: (1) Intel® Server Board S2600GL4 in 1U chassis (16 DIMM), (1) Airduct, (1) Standard control panel, (1) Front 1xVGA and 2xUSB, (1) Optical Disk Drive bay, (4) 3.5” Hot Swap Drive Carriers, (2) right angle SFF8087 to SFF8087 cables, (2) CPU heatsinks, (2) Risers: 1x16 PCIe FHHL slot on each, (1) 460W AC Power Supply |
# of 3.5" hard drives |
4 |
3.5" hard drive support |
Supports 4 hot-swap 3.5" SATA 3G drives standard, SAS 3G with chipset activation key, 6G with descrete controler |
Yes |
|
Memory Specifications |
|
Memory types |
DDR3 ECC UDIMM, RDIMM, LRDIMM up to 1600 speed in 1DPC configuration |
| # of DIMMs | 16 |
| Max Memory Size (dependent on memory type) | 512 |
Graphics Specifications |
|
Integrated graphics |
Yes |
Expansion Options |
|
PCIe* x16 Gen 3 |
2 |
Intel® I/O Expansion Module PCIe x8 Gen 3 |
1 |
Intel® Internal I/O Expansion Module PCIe x8 Gen 3 |
1 |
I/O Specifications |
|
# of USB ports |
5 |
# of SATA ports |
10 |
RAID configuration |
Software RAID 1,0,10 optional 5 |
# of serial ports |
2 |
Integrated LAN |
4x 1GbE |
# of LAN ports |
4 |
Optical drive support |
Yes |
Integrated SAS ports |
0 |
Embedded USB (eUSB) solid-state drive option |
Yes |
Advanced Technologies |
|
True |
|
Integrated BMC with IPMI |
IPMI 2.0 |
2 |
|
Yes |
|
Intel® On-Demand Redundant Power |
Yes |
All capabilities |
|
All capabilities |
|
All capabilities |
|
Compatible Products Lists |
|
Compatible RAID |
Intel® Integrated RAID Module RMS25PB080 Intel® Integrated RAID Module RMS25PB040 Intel® Integrated RAID Module RMT3PB080 Intel® Integrated RAID Module RMS25JB080 Intel® Integrated RAID Module RMS25JB040 Intel® Integrated RAID Module RMS25KB080 Intel® Integrated RAID Module RMS25KB040 Intel® Integrated RAID Module RMS25CB080 |
Compatible processor |
Intel® Xeon® Processor E5-2648L (20M, 1.80 GHz, 8.0 GT/s Intel® QPI) Intel® Xeon® Processor E5-2658 (20M, 2.10 GHz, 8.0 GT/s Intel® QPI) Intel® Xeon® Processor E5-2680 (20M Cache, 2.70 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2660 (20M Cache, 2.20 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2650L (20M Cache, 1.80 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2630L (15M Cache, 2.00 GHz, 7.20 GT/s Intel® QPI) Intel® Xeon® Processor E5-2643 (10M Cache, 3.30 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2609 (10M Cache, 2.40 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5-2667 (15M Cache, 2.90 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2650 (20M Cache, 2.00 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2640 (15M Cache, 2.50 GHz, 7.20 GT/s Intel® QPI) Intel® Xeon® Processor E5-2603 (10M Cache, 1.80 GHz, 6.40 GT/s Intel® QPI) Intel® Xeon® Processor E5-2630 (15M Cache, 2.30 GHz, 7.20 GT/s Intel® QPI) Intel® Xeon® Processor E5-2620 (15M Cache, 2.00 GHz, 7.20 GT/s Intel® QPI) Intel® Xeon® Processor E5-2670 (20M Cache, 2.60 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2665 (20M Cache, 2.40 GHz, 8.00 GT/s Intel® QPI) Intel® Xeon® Processor E5-2637 (5M Cache, 3.00 GHz, 8.00 GT/s Intel® QPI) |
Compatible spares and accessories |
Quad Port Intel® I350-AE4 GbE I/O Module AXX4P1GBPWLIOM Dual Port Intel® 82599EB 10GbE I/O Module AXX10GBNIAIOM Dual Port Intel® X540-BT2 10GbE I/O Module AXX10GBTWLIOM FDR InfiniBand* ConnectX-3* I/O Module AXX1FDRIBIOM (Single Port) FDR InfiniBand* ConnectX-3* I/O Module AXX2FDRIBIOM (Dual Port) |
Tested Component Lists |
|
Tested memory list |
|
Tested hard drive list |
|
Tested operating system list |
