Intel® E8870 ChipsetOverview
The Intel® E8870 chipset represents a new generation of chipset architecture specifically designed to meet the needs of high-end, 2-way and 4-way server systems. The Intel E8870 chipset, optimized for the Intel® Itanium® processor, provides new levels of performance, scalability, and enhanced error detection, correction and containment.
Product information
-
Download Product Brief
The Intel® E8870 chipset is the first of a new generation of chipset architecture, specifically designed to meet the needs of high-end 2-way and 4-way server platform segments. The Intel E8870 chipset, optimized for the Intel® Itanium® 2 processor, provides new levels of performance, scalability, and enhanced error detection, correction and containment.
File Type/Size: PDF 706KB

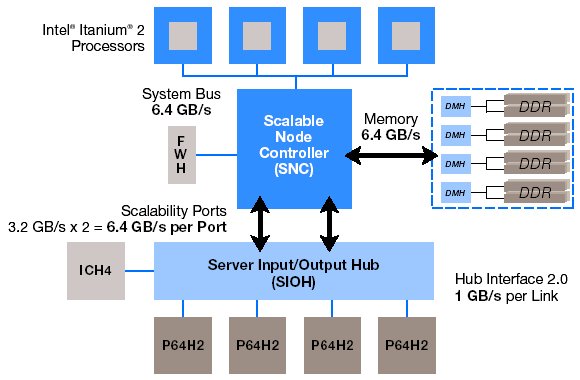

- View Chipset System Diagram
- View Intel® Itanium® Processor Platform Architecture Demos
- View Boundary Scan Description Language (BSDL) files
- Server Chipset Comparison Chart
Features and benefits
| Balanced chipset architecture | Delivers optimal system performance through well-aligned bandwidths (system bus, memory, SP and I/O bandwidths are well balanced). |
|---|---|
| 400 MHz, 128-bit system bus capability | 6.4 GB/s system bus supports up to four Intel® Itanium® processors per node for optimal system performance. |
| High memory capacity | The DDR Memory Hub (DMH) provides a maximum of 8 DIMM slots with an aggregate of 32 memory slots enabled per processor node. Maximum capacity supported per processor node is 128 GB using 4 GB DIMMs. |
| Two high bandwidth scalability ports per SNC and SIOH | Provides sufficient system headroom for single-node or multiple-node and degraded configurations. |
| Four hub interface 2.0 connectivity | Delivers 1 GB/s bandwidth per connection, providing multiple I/O configuration options and offering both flexibility and performance. |
| I/O pre-fetch engine and built-in cache | Delivers full bandwidth on data return. |
| High performance PCI/PCI-X bridge support | Provides support to all PCI/PCI-X I/O devices, from legacy PCI to higher performance PCI-X at 133 MHz. |
| Advanced platform RASUM | Features such as hot-plug modules for processor and memory, Error Correction Code (ECC) protection and correction, memory scrubbing, Memory Device Failure Recovery (MDFR), multiple redundant I/O paths and error logging combine to yield a more reliable platform, reducing downtime for repair and ensuring data integrity across all interconnects and busses. |
